SSC61.5U | MT Series Actuator, 24 Vac, 0 to 10 Vdc control, SR. 300N. | Siemens (OBSOLETE)
Powermite MT Series actuator, 24 Vac, 0 to 10 Vdc spring return. Works with MT Series valves with 7/32-inch (5.5mm) stroke. UL listed for plenum installations, manual override with visual position indication. Provides 65 lb. (300 N) nominal force.

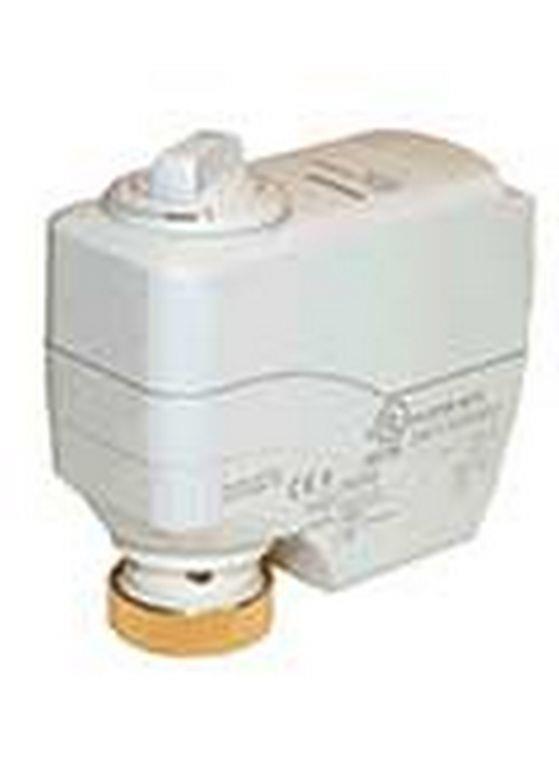

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SSC61.5U
Documents and manuals
Siemens SSC61.5U Documents
Datasheet(Electromotoric actuators SSC..)Datasheet(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet)Datasheet(Powermite 599 MT Series Terminal Unit 3-Way Valves. Submittal Sheet)Datasheet(Powermite 599 MT Series SSC Electronic Valve Actuator. 24 Vac Proportional Control Technical Instructions)Declaration of conformity(CE declaration SSC61..SSD61.5..)Environmental Declaration(Electromotoric actuators. SSC..)Installation instruction(SSC Series Electronic Valve Installation Instructions) Installation Instructions More Info
Overview
Details for SSC61.5U
DISCONTINUED AND REPLACED WITH S55155-A111
MT Series Actuator, 24 Vac, 0 to 10 Vdc control, SR. 300N.
Powermite MT Series actuator, 24 Vac, 0 to 10 Vdc spring return. Works with MT Series valves with 7/32-inch (5.5mm) stroke. UL listed for plenum installations, manual override with visual position indication. Provides 65 lb. (300 N) nominal force.Specifications
- Fail Safe
- Yes
- Spring return function
- Spring return functionality
- Ambient temperature, operation
- 5…50 °C
- Ambient humidity, operation
- 90 % r.h.
- Operating voltage
- 24 VAC/DC
- Supply Voltage
- 24 VAC
- Degree of protection
- IP40
