299-03130 | Valve assy 2W NC 3/4", 6.3Cv, Eq Pct SS Trim FxF, 2-pos Electronic Act SR | Siemens
Flowrite 599 Series Valve Assembly features a 2-position control, spring return, 24 Vac electro-mechanical actuator. The 2-way, normally closed, 3/4-inch, 6.3 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and female x female end connections.

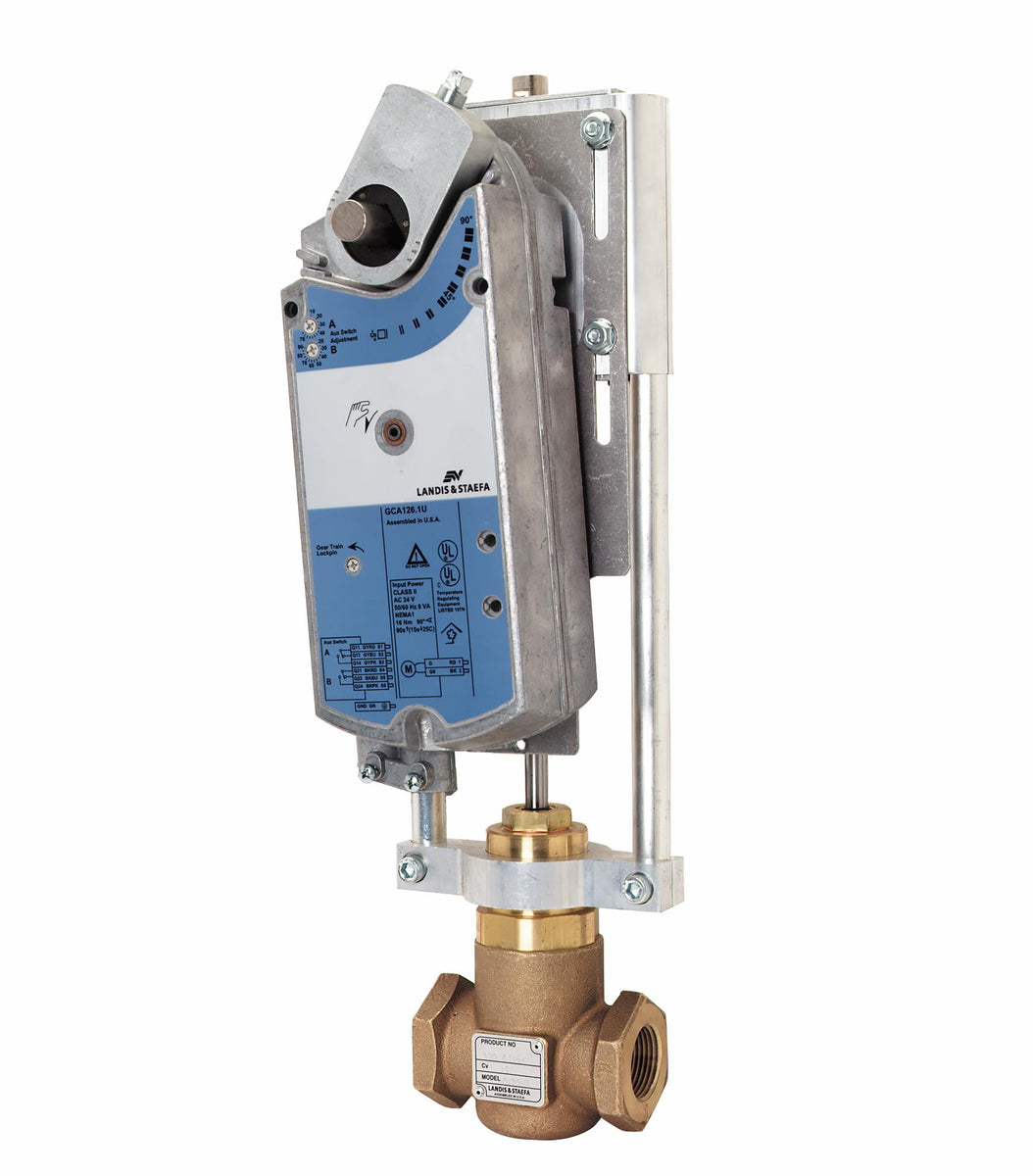

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 299-03130
Documents and manuals
Siemens 299-03130 Documents
Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite 599 Series Rack and Pinion Valves Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet for Actuator(Flowrite 599 Series Rack and Pinion Valves Technical Instructions) More Info
Overview
Details for 299-03130
Valve assy 2W NC 3/4", 6.3Cv, Eq Pct SS Trim FxF, 2-pos Electronic Act SR
Specifications
- Valve Type
- Two-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- UNS CA 844 bronze
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- NO
- Medium temperature
- 20…250 ºF
- Ambient temperature, operation
- -25 to 130°F, -32 to 55°C
- Stroke
- 3/4 in., 20 mm
- Valve Actuator Type
- Electronic
- Normally Open/Normally Closed
- Normally Closed
- Supply Voltage
- 24 VAC
- Power consumption
- 8 VA running, 53 VA holding
