260-02000 | Valve assy NC 1/2" 0.4Cv FxF Brass Trim Elect Act SR float | Siemens (OBSOLETE)
This Powermite 599 MT Series Normally Closed Valve Assembly features an electronic actuator with 24 volts AC operating voltage, floating and Fail-safe. The assembly is ANSI Leakage Class IV, has a brass trim and a female to female connection. This assembly has a flow rate of 0.4 Cv, and a line size of 1/2".

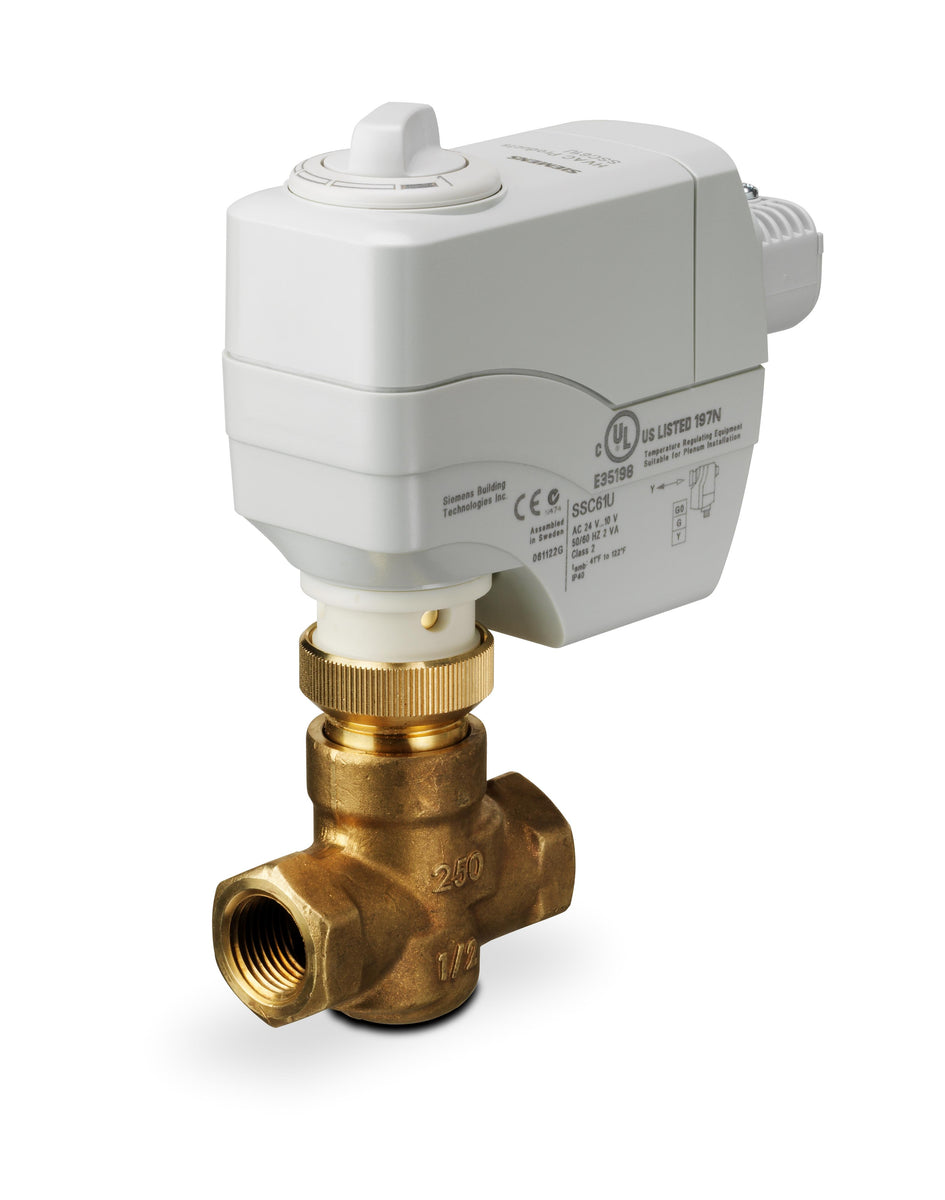

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 260-02000
Documents and manuals
Siemens 260-02000 Documents
Datasheet(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet)Datasheet(Powermite 599 Series MT Series Terminal Unit 2-way Valves Technical Instructions)Datasheet(Powermite 599 MT Series Terminal Unit Valve and Assembly Selection Technical Bulletin)Datasheet(Powermite 599 MT Series SSC Electronic Valve actuator. 24 Vac. Floating Control. Technical Instructions)Installation instruction(SSC Series Electronic Valve Installation Instructions)Datasheet for Actuator(Electromotoric actuators SSC..) Installation Instructions More Info
Overview
Details for 260-02000
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
Valve assy NC 1/2" 0.4Cv FxF Brass Trim Elect Act SR float
Specifications
- Valve Type
- Two-way
- Port Configuration
- 2-Way Normally closed
- End Connection
- FxF
- Medium temperature
- 35…250 ºF
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
