T02CN13G7 | Contactor, Tesys N Contactors, nonreversing, NEMA size 1, 27A, 10HP at 460VAC, 3P, 3 phase, 120VAC coil at 50/60Hz, open | Square D by Schneider Electric

Square D | T02CN13G7

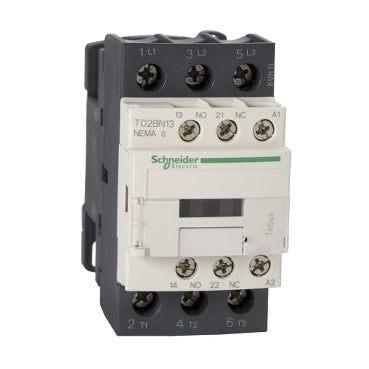

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to T02CN13G7

Documents and manuals

Square D T02CN13G7 Documents

Overview

Details for T02CN13G7

Contactor, Tesys N Contactors, nonreversing, NEMA size 1, 27A, 10HP at 460VAC, 3P, 3 phase, 120VAC coil at 50/60Hz, open

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 1 contactor has a 27 continuous current rating. It also has ratings of 7.5 HP at 200 to 230 Vac and 10 HP at 460 and 575 VAC. To maximize convenience and to reduce inventory the TeSys N contactor uses the common TeSys accessories. The contactor has a 120 VAC replaceable coil. Contactor is UL listed and CSA Certified. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 3.66 inches deep. It weighs 0.92 lbs. The screw clamp terminals will accept power wires from 14 AWG to 6 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.

Specifications

Product Type
Contactor
Range
TeSys N
Contactor Type
Non-reversing
NEMA Size
1
Motor Horsepower Rating HP
7.5 hp 200 V AC;7.5 hp 230 V AC;10 hp 460 V AC;10 hp 575 V AC
Rated Current
27 A
[Ue] Rated Operational Voltage
600 V AC
Network Phases
3 phase
Number of Poles
3P
Control Circuit
Common control circuit
Coil Volltage
120 V AC
Auxiliary Contact Composition
1 NO + 1 NC
Electrical Connection
Screw clamp terminals
Height
3.34 in (84.84 mm)
Width
1.76 in (44.70 mm)
Depth
3.66 in (92.96 mm)
Product Weight
0.92 lb(US) (0.42 kg)
Product Certifications
UL Listed;CSA
NEMA Degree of Protection
Not rated (open device)
Category
21196-TESYS N CONTACTORS SIZES 00 - 2
Discount Schedule
CP1
GTIN
3606480573224
Returnability
Yes
Country of origin
FR
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.41 in (11.2 cm)
Package 1 Width
3.62 in (9.2 cm)
Package 1 Length
1.97 in (5.0 cm)
Package 1 Weight
0.91 lb(US) (0.414 kg)
