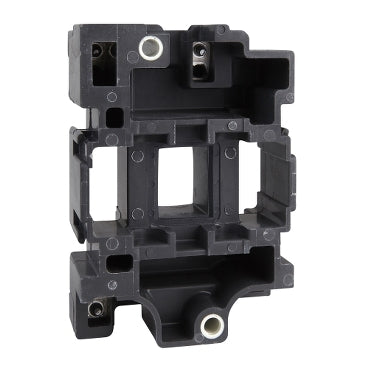

LX1D6F7 | TeSys Deca - contactor coil - LX1D6 - 110 V AC 50/60 Hz for 80 & 95 A contactor | Square D by Schneider Electric

Brand: Square DSKU: LX1D6F7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LX1D6F7

Jump to: Overview & Specifications Reviews

Overview Details for LX1D6F7

TeSys Deca - contactor coil - LX1D6 - 110 V AC 50/60 Hz for 80 & 95 A contactor

TeSys D replacement AC coil 110V 50/60Hz for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D40 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product or Component Type: Contactor coil
Device short name: LX1D6
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 110 V AC 50/60 Hz
average resistance: 26 Ohm 68 °F (20 °C)
Inductance of closed circuit: 1.7 H
Product Compatibility: LC1D40, LC1D50, LC1D65...D95
Mechanical durability: 4 Mcycles
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
Coil technology: Without built-in suppressor module
control circuit voltage limits: Drop-out 0.3...0.6 Uc 50/60 Hz 131 °F (55 °C)), Operational 0.8...1.1 Uc 50 Hz 131 °F (55 °C)), Operational 0.85...1.1 Uc 60 Hz 131 °F (55 °C))
inrush power in VA: 245 VA 60 Hz 0.75 68 °F (20 °C)), 245 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA: 26 VA 60 Hz 0.3 68 °F (20 °C)), 26 VA 50 Hz 0.3 68 °F (20 °C))
heat dissipation: 6…10 W 50/60 Hz
Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
Net Weight: 0.62 lb(US) (0.28 kg)
Category: 22341-CONTACTOR,D,K,&F ACCESS
Discount Schedule: I12
GTIN: 3389110233377
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7 cm)
Package 1 Width: 3.15 in (8 cm)
Package 1 Length: 6.30 in (16 cm)
Package 1 Weight: 11.11 oz (315 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 16
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.09 lb(US) (5.482 kg)
Warranty: 18 months
