LC1D40A6BD | IEC contactor, TeSys Deca, nonreversing, 40A, 30HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style | Square D by Schneider Electric

Brand: Square DSKU: LC1D40A6BD

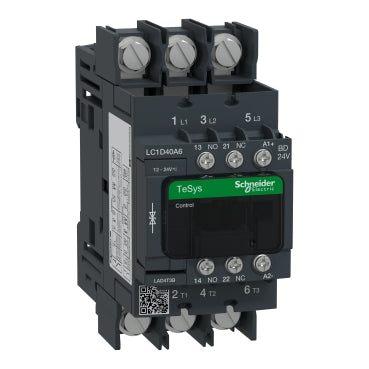

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D40A6BD

Jump to: Overview & Specifications Reviews

Overview Details for LC1D40A6BD

IEC contactor, TeSys Deca, nonreversing, 40A, 30HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 40A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 3HP at 115VAC and 5HP at 240VAC single phase. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 2.04 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

range: TeSys;TeSys Deca
Range of Product: TeSys D;TeSys Deca
Product or Component Type: Contactor
device short name: LC1D
contactor application: Resistive load;Motor control
utilisation category: AC-4;AC-1;AC-3;AC-3e
poles description: 3P
[Ue] rated operational voltage: Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
[Ie] rated operational current: 60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;40 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;40 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
[Uc] control circuit voltage: 24 V DC
motor power kW: 18.5 kW 380...400 V AC 50/60 Hz AC-3);11 kW 220...230 V AC 50/60 Hz AC-3);22 kW 415...440 V AC 50/60 Hz AC-3);22 kW 500 V AC 50/60 Hz AC-3);30 kW 660...690 V AC 50/60 Hz AC-3);9 kW 400 V AC 50/60 Hz AC-4);18.5 kW 380...400 V AC 50/60 Hz AC-3e);11 kW 220...230 V AC 50/60 Hz AC-3e);22 kW 415...440 V AC 50/60 Hz AC-3e);22 kW 500 V AC 50/60 Hz AC-3e);30 kW 660...690 V AC 50/60 Hz AC-3e)
Maximum Horse Power Rating: 5 hp 230/240 V at AC 50/60 Hz for 1 phase;10 hp 230/240 V at AC 50/60 Hz for 3 phase;30 hp 575/600 V at AC 50/60 Hz for 3 phase;10 hp 200/208 V at AC 50/60 Hz for 3 phase;3 hp 115 V at AC 50/60 Hz for 1 phase;30 hp 460/480 V at AC 50/60 Hz for 3 phase
compatibility code: LC1D
pole contact composition: 3 NO
contact compatibility: M4
protective cover: With
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C) signalling circuit;60 A 140 °F (60 °C) power circuit
Irms rated making capacity: 140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;800 A 440 V power circuit IEC 60947
rated breaking capacity: 800 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current: 320 A 104 °F (40 °C) - 10 s power circuit;720 A 104 °F (40 °C) - 1 s power circuit;72 A 104 °F (40 °C) - 10 min power circuit;165 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
associated fuse rating: 10 A gG signalling circuit IEC 60947-5-1;80 A gG <= 690 V type 1 power circuit;80 A gG <= 690 V type 2 power circuit
average impedance: 1.5 mOhm - Ith 60 A 50 Hz power circuit
power dissipation per pole: 2.4 W AC-3;5.4 W AC-1;2.4 W AC-3e
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
overvoltage category: III
pollution degree: 3
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 10 Mcycles
electrical durability: 0.7 Mcycles 60 A AC-1 <= 440 V;1.5 Mcycles 40 A AC-3 <= 440 V;1.5 Mcycles 40 A AC-3e <= 440 V
control circuit type: DC standard
coil technology: Built-in bidirectional peak limiting diode suppressor
control circuit voltage limits: 0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC;0.75...1.25 Uc -40…140 °F (-40…60 °C) operational DC;1...1.25 Uc 140…158 °F (60…70 °C) operational DC
inrush power in W: 19 W 68 °F (20 °C))
hold-in power consumption in W: 7.4 W 68 °F (20 °C)
operating time: 42.5...57.5 ms closing;16...24 ms opening
time constant: 34 ms
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
connections - terminals: Control circuit lugs-ring terminals 0.31 in (8 mm);Power circuit lugs-ring terminals 0.65 in (16.5 mm)
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5;Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5;Power circuit 53.10 lbf.in (6 N.m) lugs-ring terminals hexagonal 0.39 in (10 mm) M6;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
auxiliary contact composition: 1 NO + 1 NC
auxiliary contacts type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency: 25...400 Hz
minimum switching voltage: 17 V signalling circuit
minimum switching current: 5 mA signalling circuit
insulation resistance: > 10 MOhm signalling circuit
non-overlap time: 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
Mounting Support: Rail;Plate
standards: CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
Product Certifications: GOST;UL;CCC;CSA
IP degree of protection: IP20 front face IEC 60529
protective treatment: THIEC 60068-2-30
climatic withstand: IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
permissible ambient air temperature around the device: -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
operating altitude: 0...9842.52 ft (0...3000 m)
fire resistance: 1562 °F (850 °C) IEC 60695-2-1
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 10 Gn for 11 ms)
Height: 4.80 in (122 mm)
Width: 2.17 in (55 mm)
Depth: 4.72 in (120 mm)
Net Weight: 2.04 lb(US) (0.925 kg)
Category: 22358-CTR;TESYS D;OPEN;40-65A DC
Discount Schedule: I12
GTIN: 3389119408615
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.44 in (6.2 cm)
Package 1 Width: 5.39 in (13.7 cm)
Package 1 Length: 5.98 in (15.2 cm)
Package 1 Weight: 31.92 oz (905.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 10
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 20.88 lb(US) (9.472 kg)
Warranty: 18 months
