LC1D326G7 | IEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, 120VAC 50/60Hz coil, open style | Square D by Schneider Electric

Brand: Square DSKU: LC1D326G7

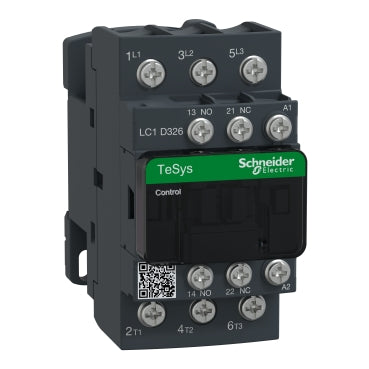

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D326G7

Jump to: Overview & Specifications Reviews

Overview Details for LC1D326G7

IEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, 3 phase, 3 pole, 3 NO, 120VAC 50/60Hz coil, open style

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 32A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 5HP at 240VAC single phase. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.90 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.83 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

Range of Product: TeSys Deca
Product or Component Type: Contactor
device short name: LC1D
contactor application: Motor control;Resistive load
utilisation category: AC-4;AC-1;AC-3;AC-3e
poles description: 3P
[Ue] rated operational voltage: Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
[Ie] rated operational current: 32 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;50 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;32 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
[Uc] control circuit voltage: 120 V AC 50/60 Hz
motor power kW: 7.5 kW 220...230 V AC 50/60 Hz AC-3);15 kW 380...400 V AC 50/60 Hz AC-3);15 kW 415...440 V AC 50/60 Hz AC-3);18.5 kW 500 V AC 50/60 Hz AC-3);18.5 kW 660...690 V AC 50/60 Hz AC-3);7.5 kW 400 V AC 50/60 Hz AC-4);7.5 kW 220...230 V AC 50/60 Hz AC-3e);15 kW 380...400 V AC 50/60 Hz AC-3e);15 kW 415...440 V AC 50/60 Hz AC-3e);18.5 kW 500 V AC 50/60 Hz AC-3e);18.5 kW 660...690 V AC 50/60 Hz AC-3e)
Maximum Horse Power Rating: 2 hp 115 V at AC 50/60 Hz for 1 phase;5 hp 230/240 V at AC 50/60 Hz for 1 phase;7.5 hp 200/208 V at AC 50/60 Hz for 3 phase;10 hp 230/240 V at AC 50/60 Hz for 3 phase;20 hp 460/480 V at AC 50/60 Hz for 3 phase;30 hp 575/600 V at AC 50/60 Hz for 3 phase
compatibility code: LC1D
pole contact composition: 3 NO
contact compatibility: M2
protective cover: With
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C) signalling circuit;50 A 140 °F (60 °C) power circuit
Irms rated making capacity: 140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;550 A 440 V power circuit IEC 60947
rated breaking capacity: 550 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current: 260 A 104 °F (40 °C) - 10 s power circuit;430 A 104 °F (40 °C) - 1 s power circuit;60 A 104 °F (40 °C) - 10 min power circuit;138 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
associated fuse rating: 10 A gG signalling circuit IEC 60947-5-1;63 A gG <= 690 V type 1 power circuit;63 A gG <= 690 V type 2 power circuit
average impedance: 2 mOhm - Ith 50 A 50 Hz power circuit
power dissipation per pole: 2 W AC-3;5 W AC-1;2 W AC-3e
[Ui] rated insulation voltage: Power circuit 690 V IEC 60947-4-1;Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
overvoltage category: III
pollution degree: 3
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 15 Mcycles
electrical durability: 1.65 Mcycles 32 A AC-3 <= 440 V;1.4 Mcycles 50 A AC-1 <= 440 V;1.65 Mcycles 25 A AC-3e <= 440 V
control circuit type: AC 50/60 Hz
coil technology: Without built-in suppressor module
control circuit voltage limits: 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
inrush power in VA: 70 VA 60 Hz 0.75 68 °F (20 °C));70 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA: 7.5 VA 60 Hz 0.3 68 °F (20 °C));7 VA 50 Hz 0.3 68 °F (20 °C))
heat dissipation: 2…3 W 50/60 Hz
operating time: 12...22 ms closing;4...19 ms opening
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
connections - terminals: Control circuit lugs-ring terminals 0.31 in (8 mm);Power circuit lugs-ring terminals 0.39 in (10 mm)
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5;Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5;Power circuit 22.13 lbf.in (2.5 N.m) lugs-ring terminals flat Ø 8 mm M4;Power circuit 22.13 lbf.in (2.5 N.m) lugs-ring terminals Philips No 2 M4;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
auxiliary contact composition: 1 NO + 1 NC
auxiliary contacts type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency: 25...400 Hz
minimum switching voltage: 17 V signalling circuit
minimum switching current: 5 mA signalling circuit
insulation resistance: > 10 MOhm signalling circuit
non-overlap time: 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
Mounting Support: Plate;Rail
standards: CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1
Product Certifications: GL;BV;CCC;DNV;RINA;LROS (Lloyds register of shipping);GOST;CSA;UL;UKCA
IP degree of protection: IP20 front face IEC 60529
protective treatment: THIEC 60068-2-30
climatic withstand: IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat
permissible ambient air temperature around the device: -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
operating altitude: 0...9842.52 ft (0...3000 m)
fire resistance: 1562 °F (850 °C) IEC 60695-2-1
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 8 Gn for 11 ms)
Height: 3.35 in (85 mm)
Width: 1.77 in (45 mm)
Depth: 3.62 in (92 mm)
Net Weight: 0.83 lb(US) (0.375 kg)
Category: 22354-CTR;TESYS D;OPEN;9-38A AC
Discount Schedule: I12
GTIN: 3389110805215
Returnability: No
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.29 in (10.9 cm)
Package 1 Width: 3.54 in (9.0 cm)
Package 1 Length: 2.13 in (5.4 cm)
Package 1 Weight: 13.05 oz (370.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 1
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 29.10 oz (825.0 g)
Warranty: 18 months
