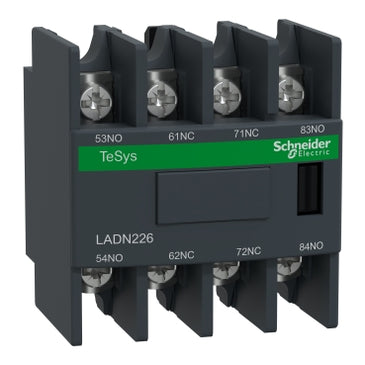

LADN226 | Auxiliary contact block, TeSys Deca, 2NO + 2NC, front mounting, lugs-ring terminals | Square D by Schneider Electric

Brand: Square DSKU: LADN226

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADN226

Jump to: Overview & Specifications Reviews

Overview Details for LADN226

Auxiliary contact block, TeSys Deca, 2NO + 2NC, front mounting, lugs-ring terminals

TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by ring lugs screw terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys, TeSys Deca
Product name: TeSys D, TeSys Deca
Product or Component Type: Auxiliary contact block
Device short name: LADN
range compatibility: TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
Mounting Location: Front
Pole contact composition: 2 NO + 2 NC
Contacts operation: Instantaneous
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A120 V AC-15, 1.04 A690 V AC-15, 0.55 A125 V DC-13, 0.1 A600 V DC-13
[Ui] rated insulation voltage: 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C)
standards: EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012
Product Certifications: CB, UL, CSA, CCC, EAC, UKCA
Irms rated making capacity: 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
permissible short-time rating: 100 A 140 °F (60 °C) 1 s, 120 A 140 °F (60 °C) 500 ms, 140 A 140 °F (60 °C) 100 ms
protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
minimum switching current: 5 mA
minimum switching voltage: 17 V
non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
insulation resistance: > 10 MOhm
connections - terminals: lugs-ring terminals 0.31 in (8 mm))
tightening torque: 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2, 15.05 lbf.in (1.7 N.m) pozidriv No 2
Height: 1.89 in (48 mm)
Width: 1.73 in (44 mm)
Depth: 1.65 in (42 mm)
Net Weight: 0.11 lb(US) (0.05 kg)
color: Dark grey
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
protective treatment: TH IEC 60068
Ambient Air Temperature for Storage: -76…176 °F (-60…80 °C)
Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
operating altitude: 9842.52 ft (3000 m)
Category: 22341-CONTACTOR,D,K,&F ACCESS
Discount Schedule: I12
GTIN: 3389110820874
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 1.89 in (4.8 cm)
Package 1 Length: 1.57 in (4 cm)
Package 1 Weight: 2.05 oz (58 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 2.09 in (5.3 cm)
Package 2 Width: 3.27 in (8.3 cm)
Package 2 Length: 10.00 in (25.4 cm)
Package 2 Weight: 20.46 oz (580 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 160
Package 3 Height: 11.81 in (30 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 20.85 lb(US) (9.458 kg)
Warranty: 18 months
