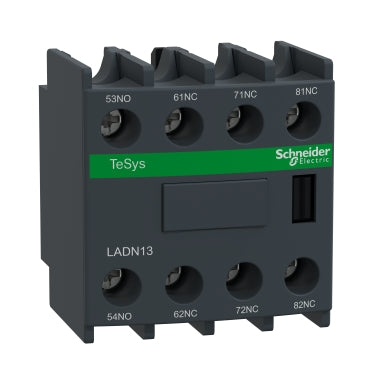

Auxiliary contact block, TeSys Deca, 1NO + 3NC, front mounting, screw clamp terminals
LADN13 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. Front mounting block, it provides 1NO+3NC instantaneous contacts rated up to 10A 690V AC. It can be used in safety applications. LADN13 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. It provides 1NO+3NC instantaneous contacts rated up to 10A 690V AC. It can be used in safety applications thanks to its NC certified mirror contacts. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Add-on block with 1NO+3NC mechanically linked auxiliary contacts, with instantaneous operation. Suitable to be included in the control of safety systems thanks to its NC certified mirror contacts. High electrical durability , several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys D and TeSys F contactors.Specifications
- Range
- TeSys, TeSys Deca
- Product name
- TeSys D, TeSys Deca
- Product or Component Type
- Auxiliary contact block
- Device short name
- LADN
- range compatibility
- TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
- Mounting Location
- Front
- Pole contact composition
- 1 NO + 3 NC
- Contacts operation
- Instantaneous
- [Ue] rated operational voltage
- 690 V AC 25...400 Hz
- [Ie] rated operational current
- 6 A120 V AC-15, 1.04 A690 V AC-15, 0.55 A125 V DC-13, 0.1 A600 V DC-13
- [Ui] rated insulation voltage
- 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
- [Ith] conventional free air thermal current
- 10 A 140 °F (60 °C)
- standards
- EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, EN 50012
- Product Certifications
- CB, UL, CSA, CCC, EAC, UKCA
- Irms rated making capacity
- 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
- permissible short-time rating
- 100 A 140 °F (60 °C) 1 s, 120 A 140 °F (60 °C) 500 ms, 140 A 140 °F (60 °C) 100 ms
- protection type
- GG fuse 10 A
- Mechanical durability
- 30 Mcycles
- minimum switching current
- 5 mA
- minimum switching voltage
- 17 V
- non-overlap time
- 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
- insulation resistance
- > 10 MOhm
- connections - terminals
- screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end, screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end, screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end, screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end, screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)rigid without cable end, screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)rigid without cable end
- tightening torque
- 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2, 15.05 lbf.in (1.7 N.m) pozidriv No 2
- Height
- 1.89 in (48 mm)
- Width
- 1.73 in (44 mm)
- Depth
- 1.65 in (42 mm)
- Net Weight
- 0.11 lb(US) (0.05 kg)
- color
- Dark grey
- Environmental characteristic
- Normal environment
- IP degree of protection
- IP20 conforming to IEC 60529
- protective treatment
- TH IEC 60068
- Ambient Air Temperature for Storage
- -76…176 °F (-60…80 °C)
- Ambient Air Temperature for Operation
- 23…140 °F (-5…60 °C)
- operating altitude
- 9842.52 ft (3000 m)
- Category
- 22341-CONTACTOR,D,K,&F ACCESS
- Discount Schedule
- I12
- GTIN
- 3389110383928
- Returnability
- Yes
- Country of origin
- FR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.97 in (5.0 cm)
- Package 1 Width
- 1.69 in (4.3 cm)
- Package 1 Length
- 2.05 in (5.2 cm)
- Package 1 Weight
- 2.15 oz (61.0 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 1.97 in (5.0 cm)
- Package 2 Width
- 3.39 in (8.6 cm)
- Package 2 Length
- 10.31 in (26.2 cm)
- Package 2 Weight
- 21.87 oz (620.0 g)
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 160
- Package 3 Height
- 11.81 in (30.0 cm)
- Package 3 Width
- 11.81 in (30.0 cm)
- Package 3 Length
- 15.75 in (40.0 cm)
- Package 3 Weight
- 22.94 lb(US) (10.404 kg)
- Warranty
- 18 months
