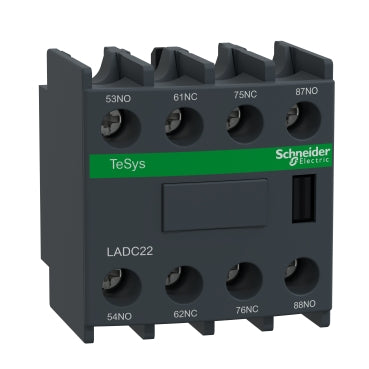

LADC22 | Auxiliary contact block, TeSys Deca, 2NO + 2NC (inc. 1NO + 1NC make before break), front, screw clamp terminals | Square D by Schneider Electric

Brand: Square DSKU: LADC22

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LADC22

Jump to: Overview & Specifications Reviews

Overview Details for LADC22

Auxiliary contact block, TeSys Deca, 2NO + 2NC (inc. 1NO + 1NC make before break), front, screw clamp terminals

LADC22 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. Front mounting block, it provides 2NO+2NC instantaneous contacts rated up to 10A 690V AC, of which 1NO+1NC are with overlap time. LADC22 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. It provides 2NO+2NC instantaneous contacts rated up to 10A 690V AC, of which 1NO+1NC with overlap time. It can be used in safety applications thanks to its NC certified mirror contacts. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Add-on block with 2NO+2NC mechanically linked auxiliary contacts, with instantaneous operation and overlap time. Suitable to be included in the control of safety systems thanks to its NC certified mirror contacts. High electrical durability , several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys D and TeSys F contactors.

Specifications

Range: TeSys, TeSys Deca
Product name: TeSys D, TeSys Deca
Product or Component Type: Auxiliary contact block
range compatibility: TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D
Mounting Location: Front
Pole contact composition: 2 NO + 2 NC
Contacts operation: Make before break 1 NO + 1 NC, Instantaneous 1 NO + 1 NC
[Ue] rated operational voltage: 690 V AC 25...400 Hz
[Ie] rated operational current: 6 A120 V AC-15, 1.04 A690 V AC-15, 0.55 A125 V DC-13, 0.1 A600 V DC-13
[Ui] rated insulation voltage: 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C)
standards: EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.5
Product Certifications: CB, UL, CSA, EAC, CE, UKCA
Irms rated making capacity: 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
permissible short-time rating: 100 A 1 s, 120 A 500 ms, 140 A 100 ms
protection type: GG fuse 10 A
Mechanical durability: 30 Mcycles
minimum switching current: 5 mA
minimum switching voltage: 17 V
Overlap time: 1.5 ms
non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
insulation resistance: > 10 MOhm
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end, screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end, screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end, screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end, screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)rigid without cable end, screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)rigid without cable end
tightening torque: 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2, 15.05 lbf.in (1.7 N.m) pozidriv No 2
Height: 1.89 in (48 mm)
Width: 1.73 in (44 mm)
Depth: 1.65 in (42 mm)
Net Weight: 0.11 lb(US) (0.05 kg)
Environmental characteristic: Normal environment
IP degree of protection: IP20 conforming to IEC 60529
protective treatment: TH IEC 60068
Ambient Air Temperature for Storage: -76…176 °F (-60…80 °C)
Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
operating altitude: 9842.52 ft (3000 m)
Category: 22341-CONTACTOR,D,K,&F ACCESS
Discount Schedule: I12
GTIN: 3389110384475
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.800 cm)
Package 1 Width: 1.65 in (4.200 cm)
Package 1 Length: 2.05 in (5.200 cm)
Package 1 Weight: 2.19 oz (62.000 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 1.89 in (4.800 cm)
Package 2 Width: 3.35 in (8.500 cm)
Package 2 Length: 10.24 in (26.000 cm)
Package 2 Weight: 21.94 oz (622.000 g)
Unit Type of Package 3: S03
Number of Units in Package 3: 160
Package 3 Height: 11.81 in (30.000 cm)
Package 3 Width: 11.81 in (30.000 cm)
Package 3 Length: 15.75 in (40.000 cm)
Package 3 Weight: 23.06 lb(US) (10.461 kg)
Warranty: 18 months
