BMXNOE0110 | Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100 | Square D by Schneider Electric

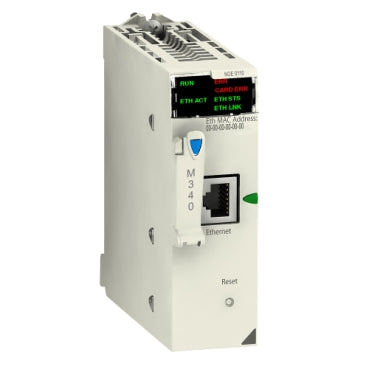

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMXNOE0110

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D BMXNOE0110 Documents

Datasheet More Info

Overview

Details for BMXNOE0110

Ethernet TCP/IP network module, Modicon M340 automation platform, flash memory card, internal RAM 16 Mb, 1 x RJ45 10/100

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.

Specifications

Range of Product: Modicon M340 automation platform
Product or Component Type: Ethernet TCP/IP network module
concept: Transparent Ready
integrated connection type: Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30
protective treatment: TC
communication service: Bandwidth management;FDR server;Rack Viewer;SNMP network administrator;Global Data;I/O scanning;Modbus TCP messaging;Web server configurable;Data Editor (via PC;pocket PC or PDA terminal);SOAP XML Web service (server)
port Ethernet: 10BASE-T/100BASE-TX
memory description: Supplied Flash memory card (BMXRWSC016M);Internal RAM 16000 kB
memory usage: User web page size internal RAM;Activating the standard web server supplied Flash memory card (BMXRWSC016M);Application saving supplied Flash memory card (BMXRWSC016M)
supply: Internal power supply via rack
Marking: CE
local signalling: for activity on Ethernet network (ETH ACT) 1 LED (green);for processor running (RUN) 1 LED (green);for status of Ethernet network (ETH STS) 1 LED (green);for data rate (ETH 100) 1 LED (red);for memory card fault (CARD ERR) 1 LED (red);for processor or system fault (ERR) 1 LED (red)
Control Type: RESET push-button cold restart
current consumption: 90 mA 24 V DC
module format: Standard
Net Weight: 0.44 lb(US) (0.2 kg)
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Relative Humidity: 10…95 % without condensation
IP Degree of Protection: IP20
Directives: 2014/35/EU - low voltage directive;2014/30/EU - electromagnetic compatibility
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3595863972856
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.13 in (5.4 cm)
Package 1 Width: 4.33 in (11.0 cm)
Package 1 Length: 4.57 in (11.6 cm)
Package 1 Weight: 8.82 oz (250.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 15
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 8.82 lb(US) (4.0 kg)
Warranty: 18 months
