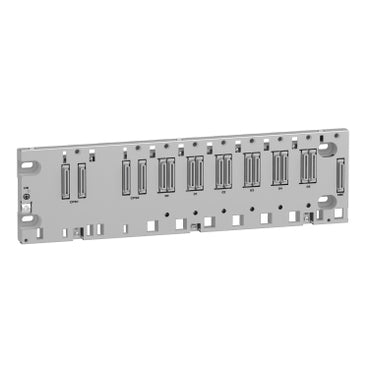

BMEXBP0602 | rack X80 - 6 slots - Redundant PS - Ethernet backplane | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMEXBP0602

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D BMEXBP0602 Documents

Datasheet More Info

Overview

Details for BMEXBP0602

rack X80 - 6 slots - Redundant PS - Ethernet backplane

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 6-slot dual Ethernet and X-bus backplane provides 6 slots with 6 Ethernet and X-bus connectors for mixed modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 152mA at 24V DC and 58mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 201000 hours of MTBF. It is an IP20 rated product. It weighs 1.02kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of Product: Modicon X80
accessory / separate part type: Rack
number of slots: 6 bus X + Ethernet
Product Compatibility: Specific application module;BMX processor;I/O module;BME processor;BMXCPS4002
power consumption in W: 191 mW 3.3 V DC;3.6 W 24 V DC
electrical connection: 1 connector (XBE) expansion module
fixing mode: By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel;By 4 M6 screws plate;By clips 35 mm symmetrical DIN rail
current consumption: 152 mA 24 V DC;58 mA 3.3 V DC
MTBF reliability: 201000 H
Net Weight: 2.25 lb(US) (1.02 kg)
IP Degree of Protection: IP20
Ambient air temperature for operation: 32…140 °F (0…60 °C)
Relative Humidity: 5…95 % without condensation
Directives: 2014/35/EU - low voltage directive;2014/30/EU - electromagnetic compatibility
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3606480911743
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.60 in (6.6 cm)
Package 1 Width: 6.06 in (15.4 cm)
Package 1 Length: 17.83 in (45.3 cm)
Package 1 Weight: 2.22 lb(US) (1.005 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 9
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 15.75 in (40.0 cm)
Package 2 Length: 23.62 in (60.0 cm)
Package 2 Weight: 19.94 lb(US) (9.045 kg)
