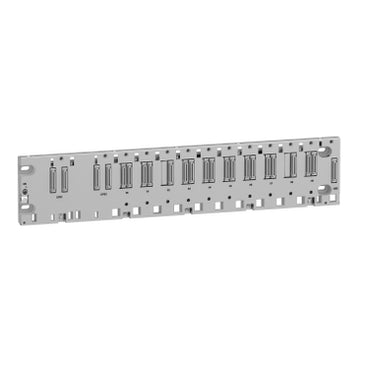

BMEXBP1002 | rack X80 - 10 slots - Redundant PS - Ethernet backplane | Square D by Schneider Electric

Brand: Square DSKU: BMEXBP1002

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to BMEXBP1002

Jump to: Overview & Specifications Reviews

Overview Details for BMEXBP1002

rack X80 - 10 slots - Redundant PS - Ethernet backplane

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 10-slot dual Ethernet and X-bus backplane provides 10 slots with 8 Ethernet and X-bus connectors for mixed modules and 2 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 162mA at 24V DC and 76mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1770000 hours of MTBF. It is an IP20 rated product. It weighs 1.37kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS4002, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of Product: Modicon X80
accessory / separate part type: Rack
number of slots: 8 bus X + Ethernet;2 bus X
Product Compatibility: Specific application module;I/O module;BMXCPS4002;BMX processor;BME processor
power consumption in W: 251 mW 3.3 V DC;3.9 W 24 V DC
electrical connection: 1 connector (XBE) expansion module
fixing mode: By 4 M6 screws plate;By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel
current consumption: 162 mA 24 V DC;76 mA 3.3 V DC
MTBF reliability: 1770000 H
Net Weight: 3.02 lb(US) (1.37 kg)
IP Degree of Protection: IP20
Ambient air temperature for operation: 32…140 °F (0…60 °C)
Relative Humidity: 5…95 % without condensation
Directives: 2014/35/EU - low voltage directive;2014/30/EU - electromagnetic compatibility
Category: 18160-MODICON M340
Discount Schedule: PC34
GTIN: 3606480911750
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.64 in (6.700 cm)
Package 1 Width: 6.02 in (15.300 cm)
Package 1 Length: 23.11 in (58.700 cm)
Package 1 Weight: 3.00 lb(US) (1.363 kg)
Unit Type of Package 2: S04
Number of Units in Package 2: 8
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 15.75 in (40.000 cm)
Package 2 Length: 23.62 in (60.000 cm)
Package 2 Weight: 25.31 lb(US) (11.480 kg)
