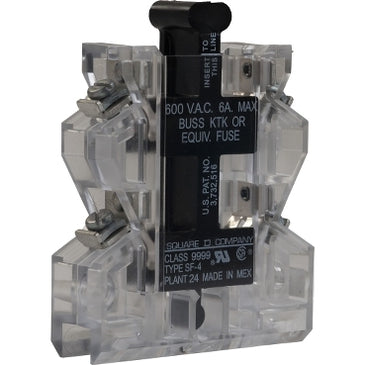

9999SF4 | NEMA Motor Starter and contactor, Type S, fuse holder kit, 6A, 600 VAC, Type M fuse, two fuses, NEMA 00 to 7 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9999SF4
Overview
Details for 9999SF4
NEMA Motor Starter and contactor, Type S, fuse holder kit, 6A, 600 VAC, Type M fuse, two fuses, NEMA 00 to 7
Type S magnetic contactors and starters are for motor control applications. The control circuit fuse holder is for use on Type S contactors and starters, when one or two control circuit fuses ≤600 V are required. This fuseholder will work on Type S contactors and starteres from NEMA Size 00 through 7. Type SF4 fuse holders will accept standard 600 V Bussmann® Type KTK or equivalent fuses (13/32 x 1-1/2") up to 6A maximum. This fusehlder is designed to hold two fuses. The fuseholder is UL Listed and UL Component Recognized.Specifications
- Product Range
- Type S
- Component type
- Fuse holder
- Used with
- contactor, starter
- NEMA size
- 5, 2, 1, 4, 3, 0, 6, 00, 7
- Number of poles
- 2
- Mounting Mode
- Side
- [Uc] control circuit voltage
- <= 600 V AC
- rated breaking capacity
- 6 A
- Fuse type
- M
- Product Certifications
- CSA, UL Listed, UL Recognized
- Category
- 21761-9999 DISCOUNT CP1
- Discount Schedule
- CP1
- GTIN
- 785901861812
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.50 in (3.81 cm)
- Package 1 Width
- 3.00 in (7.62 cm)
- Package 1 Length
- 4.50 in (11.43 cm)
- Package 1 Weight
- 3.68 oz (104.326 g)
- Warranty
- 18 months
