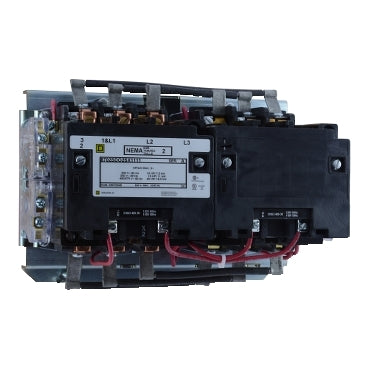

8702SDO2V02S | NEMA Contactor, Type S, reversing, horizontal, Size 2, 45A, 25 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 120 VAC coil, open style | Square D by Schneider Electric

NEMA Contactor, Type S, reversing, horizontal, Size 2, 45A, 25 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 120 VAC coil, open style

Type S NEMA reversing magnetic contactors are used for starting, stopping, and reversing AC motors where overload protection is separately provided. NEMA 8702 reversing contactors are available in NEMA Sizes 00-7. This is a Size 2 reversing contactor. NEMA reversing contactors consist of two 8502 NEMA contactors that are mechanically and electrically interlocked Sizes 0-5 revesring contactors are available in either horizontal or vertical arrangements. This reversing contactor is arranged horizontally. Type S reversing contactors have ratings up to 810 amperes. This NEMA 2 reversing contactor has a 45 ampere rating. Type S reversing contactors are available in 1, 2, 3, and 4 pole versions. This is a 3 pole reversing contactor. NEMA Size 1 reversing contatctors have ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC poly phase. These starters are available with a wide variety of replaceable coil voltages. The coil in this contactor is rated for 110/120 VAC 50/60 Hz which is wired for separate control. This NEMA reversing contactor is not in an enclosure. It is an open device. Reversing contactor is 6.88 inches tall, 9.00 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA reversing contactors are UL listed and CSA certified for global applications.
