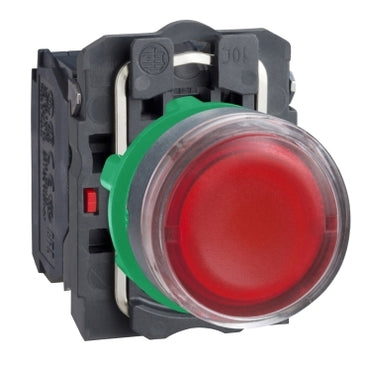

Harmony Flush Complete Illuminated Pushbutton, 22mm, Red, Spring Return, 1NO + 1NC, 24V AC/DC

Harmony Flush Complete Illuminated Pushbutton
  • Mounting Diameter: 22mm
  • Shape of Signaling Unit Head: Round
  • Type of Operator: Spring Return
  • Operator Profile: Red flush unmarked
  • Operator Additional Information: With plain lens
  • Contacts Type and Composition: 1 NO + 1 NC
  • Contacts Operation: Slow-break
  • Rated Supply Voltage: 24V AC/DC 50/60 Hz
  • Connections-Terminals: Screw Clamp Terminals
  • Light Source: Protected LED
  • Bulb Base: Integral LED
  • Degree of Protection: NEMA 4X, 13
This Harmony XB5, illuminated modular red push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Specifications

Range of Product
Harmony XB5
Product or Component Type
Illuminated push-button
device short name
XB5
bezel material
Dark grey plastic
fixing collar material
Plastic
head type
Standard
mounting diameter
0.87 in (22 mm)
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
spring return
operator profile
Red flush;unmarked
operator additional information
With plain lens
contacts type and composition
1 NO + 1 NC
contact operation
Slow-break
connections - terminals
Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
light source
Universal LED
bulb base
Integral LED
[Us] rated supply voltage
24 V AC/DC 50/60 Hz
cap/operator or lens colour
Red
Height
1.65 in (42 mm)
Width
1.18 in (30 mm)
Depth
2.24 in (57 mm)
terminals description ISO n°1
(21-22)NC;(13-14)NO
Net Weight
0.12 lb(US) (0.056 kg)
resistance to high pressure washer
1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
contacts usage
Standard contacts
positive opening
With EN/IEC 60947-5-1 appendix K
operating travel
0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force
3.5 N NC changing electrical state;3.8 N
mechanical durability
10000000 cycles
tightening torque
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head
Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material
Silver alloy (Ag/Ni)
short-circuit protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current
10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage
600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV EN/IEC 60947-1
[Ie] rated operational current
3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability
1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability
Λ < 10exp(-6) 5 V;1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V;5 mA in clean environment EN/IEC 60947-5-4
signalling type
Steady
supply voltage limits
19.2…30 V DC;21.6…26.4 V AC
Current Consumption
18 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV IEC 61000-4-5
device presentation
Complete product
protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
overvoltage category
Class II IEC 60536
IP degree of protection
IP66 IEC 60529;IP69;IP69K;IP67
NEMA degree of protection
NEMA 13;NEMA 4X
IK degree of protection
IK05 IEC 50102
Standards
UL 508;EN/IEC 60947-5-1;EN/IEC 60947-5-4;EN/IEC 60947-1;CSA C22.2 No 14;JIS C8201-5-1;JIS C8201-1
Product Certifications
LROS (Lloyds register of shipping);UL Listed;CSA;BV;GL;DNV
vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients
2 kV IEC 61000-4-4
resistance to electromagnetic fields
9.14 V/m (10 V/m) IEC 61000-4-3
resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2;8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission
Class B IEC 55011
Category
22467-PUSHBUTTONS;22MM(PLASTIC) NEW
Discount Schedule
CS2
GTIN
3389110904123
Returnability
Yes
Country of origin
FR
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.26 in (3.2 cm)
Package 1 Width
2.05 in (5.2 cm)
Package 1 Length
3.43 in (8.7 cm)
Package 1 Weight
1.95 oz (55.3 g)
Unit Type of Package 2
S03
Number of Units in Package 2
100
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
13.12 lb(US) (5.953 kg)
Unit Type of Package 3
P06
Number of Units in Package 3
800
Package 3 Height
29.53 in (75.0 cm)
Package 3 Width
31.50 in (80.0 cm)
Package 3 Length
23.62 in (60.0 cm)
Package 3 Weight
122.63 lb(US) (55.626 kg)
Warranty
18 months
