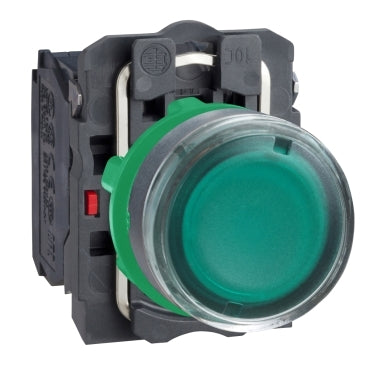

XB5AW33B5 | Green flush complete illum pushbutton 22mm spring return 1NO+1NC 24V | Square D by Schneider Electric

Brand: Square DSKU: XB5AW33B5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XB5AW33B5

Jump to: Overview & Specifications Reviews

Overview Details for XB5AW33B5

Green flush complete illum pushbutton 22mm spring return 1NO+1NC 24V

Green flush complete illum pushbutton

Bezel material : Plastic
Fixing collar material : Plastic
Mounting diameter : 22 mm
Type of operator : Spring return
Operator profile : Green flush unmarked
Contacts type and composition : 1 NO + 1 NC.

This Harmony XB5, illuminated modular green push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Specifications

Range of Product: Harmony XB5
Product or Component Type: Illuminated push-button
device short name: XB5
bezel material: Dark grey plastic
fixing collar material: Plastic
head type: Standard
mounting diameter: 0.87 in (22 mm)
sale per indivisible quantity: 1
shape of signaling unit head: Round
type of operator: spring return
operator profile: Green flush;unmarked
operator additional information: With plain lens
contacts type and composition: 1 NO + 1 NC
contact operation: Slow-break
connections - terminals: Screw clamp terminals;<= 2 x 1.5 mm² with cable end EN/IEC 60947-1;Screw clamp terminals;1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
light source: Universal LED
bulb base: Integral LED
[Us] rated supply voltage: 24 V AC/DC 50/60 Hz
cap/operator or lens colour: Green
Height: 1.65 in (42 mm)
Width: 1.18 in (30 mm)
Depth: 2.24 in (57 mm)
terminals description ISO n°1: (21-22)NC;(13-14)NO
Net Weight: 0.12 lb(US) (0.056 kg)
resistance to high pressure washer: 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
contacts usage: Standard contacts
positive opening: With EN/IEC 60947-5-1 appendix K
operating travel: 0.06 in (1.5 mm) NC changing electrical state);0.10 in (2.6 mm) NO changing electrical state);0.17 in (4.3 mm) total travel)
operating force: 3.5 N NC changing electrical state;3.8 N
mechanical durability: 10000000 cycles
tightening torque: 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
shape of screw head: Cross Philips no 1;Cross pozidriv No 1;Slotted flat Ø 4 mm;Slotted flat Ø 5.5 mm
contacts material: Silver alloy (Ag/Ni)
short-circuit protection: 10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A EN/IEC 60947-5-1
[Ui] rated insulation voltage: 600 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV EN/IEC 60947-1
[Ie] rated operational current: 3 A 240 V;AC-15;A600 EN/IEC 60947-5-1;6 A 120 V;AC-15;A600 EN/IEC 60947-5-1;0.1 A 600 V;DC-13;Q600 EN/IEC 60947-5-1;0.27 A 250 V;DC-13;Q600 EN/IEC 60947-5-1;0.55 A 125 V;DC-13;Q600 EN/IEC 60947-5-1;1.2 A 600 V;AC-15;A600 EN/IEC 60947-5-1
electrical durability: 1000000 cycles;AC-15;2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;AC-15;4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C;1000000 cycles;DC-13;0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
electrical reliability: Λ < 10exp(-6) 5 V;1 mA in clean environment EN/IEC 60947-5-4;Λ < 10exp(-8) 17 V;5 mA in clean environment EN/IEC 60947-5-4
signalling type: Steady
supply voltage limits: 19.2…30 V DC;21.6…26.4 V AC
Current Consumption: 18 mA
service life: 100000 h at rated voltage and 25 °C
surge withstand: 1 kV IEC 61000-4-5
device presentation: Complete product
protective treatment: TH
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -40…158 °F (-40…70 °C)
overvoltage category: Class II IEC 60536
IP degree of protection: IP66 IEC 60529;IP69;IP69K;IP67
NEMA degree of protection: NEMA 13;NEMA 4X
IK degree of protection: IK05 IEC 50102
Standards: EN/IEC 60947-5-1;CSA C22.2 No 14;UL 508;EN/IEC 60947-1;JIS C8201-5-1;EN/IEC 60947-5-4;JIS C8201-1
Product Certifications: UL Listed;GL;CSA;LROS (Lloyds register of shipping);DNV;BV
vibration resistance: 5 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27;50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
resistance to fast transients: 2 kV IEC 61000-4-4
resistance to electromagnetic fields: 9.14 V/m (10 V/m) IEC 61000-4-3
resistance to electrostatic discharge: 6 kV on contact (on metal parts) IEC 61000-4-2;8 kV in free air (in insulating parts) IEC 61000-4-2
electromagnetic emission: Class B IEC 55011
Category: 22467-PUSHBUTTONS;22MM(PLASTIC) NEW
Discount Schedule: CS2
GTIN: 3389110904062
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.38 in (3.5 cm)
Package 1 Width: 2.17 in (5.5 cm)
Package 1 Length: 3.35 in (8.5 cm)
Package 1 Weight: 1.96 oz (55.56 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 100
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 13.23 lb(US) (6.003 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 800
Package 3 Height: 29.53 in (75.0 cm)
Package 3 Width: 31.50 in (80.0 cm)
Package 3 Length: 23.62 in (60.0 cm)
Package 3 Weight: 123.51 lb(US) (56.024 kg)
Warranty: 18 months
