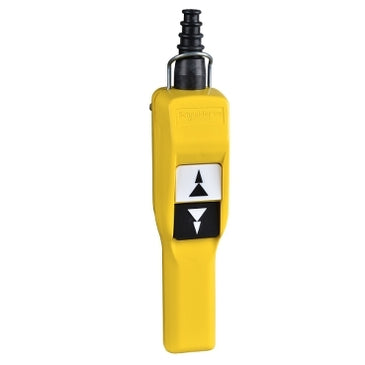

XACA207 | Pendant station XAC-A pistol grip - 2 push buttons | Square D by Schneider Electric

Brand: Square DSKU: XACA207

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to XACA207

Jump to: Overview & Specifications Reviews

Overview Details for XACA207

Pendant station XAC-A pistol grip - 2 push buttons

Pendant station XAC-A pistol grip - 2 push button

Control station composition : 2 push-buttons
Control button type : First push-button 2 NO raise, slow - Second push-button 2 NO lower, slow.
mechanical interlocking : With mechanical interlocking
Control station colour : Yellow

This Harmony XACA207 is a pendant station pistol grip with 2 push button for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Specifications

Range of Product: Harmony XAC
Product or Component Type: Pendant control station
device short name: XACA pistol grip
control station type: Double insulated
Enclosure Material: Polypropylene
Control Type: Intuitive
electrical circuit type: Control circuit
Enclosure Type: Complete ready for use
control station application: Control of 2-speed hoist motor
control station composition: 2 push-buttons
control button type: First push-button 2 NO (2 step) raise;slow-fast;Second push-button 2 NO (2 step) lower;slow-fast
product compatibility: ZB2BE101 + ZB2BE201 for each direction
mechanical interlocking: With mechanical interlocking
control station colour: Yellow
connections - terminals: Screw clamp terminals;1 x 2.5 mm² with or without cable end;Screw clamp terminals;2 x 1.5 mm² with or without cable end
Standards: EN/IEC 60204-32;CSA C22.2 No 14;UL 508;EN/IEC 60947-5-1
Product Certifications: CSA;UL
protective treatment: TH
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
vibration resistance: 15 gn 10…500 Hz)IEC 60068-2-6
shock resistance: 100 gn IEC 60068-2-27
overvoltage category: Class II IEC 61140
IP degree of protection: IP65 conforming to IEC 60529
IK degree of protection: IK08 EN 50102
mechanical durability: 1000000 cycles
cable entry: Rubber sleeve with stepped entry 0.28…0.59 in (7…15 mm)
contact code designation: A600 AC-15;Ue = 240 V;Ie = 3 A IEC 60947-5-1 appendix A;A600 AC-15;Ue = 600 V;Ie = 1.2 A IEC 60947-5-1 appendix A;Q600 DC-13;Ue = 250 V;Ie = 0.27 A IEC 60947-5-1 appendix A;Q600 DC-13;Ue = 600 V;Ie = 0.1 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current: 10 A
[Ui] rated insulation voltage: 600 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-1
contact operation: Staggered;Slow-break
maximum resistance across terminals: 25 MOhm
operating force: 13…15 N
short-circuit protection: 10 A fuse protection cartridge gG
rated operational power in W: 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C;48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C;65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
terminals description ISO n°1: (3-4)NO
terminal identifier: AI1;AI2
Net Weight: 0.71 lb(US) (0.32 kg)
Category: 22473-PUSHBUTTON;PENDANTS
Discount Schedule: CS2
GTIN: 3389110645033
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.60 in (6.6 cm)
Package 1 Width: 4.02 in (10.2 cm)
Package 1 Length: 11.46 in (29.1 cm)
Package 1 Weight: 9.98 oz (283.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 6
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 4.41 lb(US) (2.0 kg)
Warranty: 18 months
