VSUS-6200-E25D-L-16 | VB: 6 in, 2W, BFV, FLG, Under, FE, 1850 cv, 50 PSI; Act (BRY-NR-2224-541+BRY-NR-2224-542): Elec, Prop, NSR, 24 VAC/VDC, TB, 210 in-lb, SPDT, Dual act | Schneider Electric

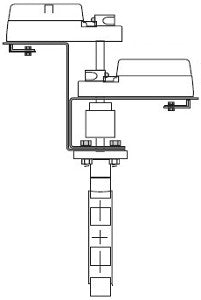

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VSUS-6200-E25D-L-16
Overview
Details for VSUS-6200-E25D-L-16
VB: 6 in, 2W, BFV, FLG, Under, FE, 1850 cv, 50 PSI; Act (BRY-NR-2224-541+BRY-NR-2224-542): Elec, Prop, NSR, 24 VAC/VDC, TB, 210 in-lb, SPDT, Dual act
Valve Assembly:- Body Size: 6 in
- Configuration: 2-Way
- Type: Butterfly
- Connection: Flanged
- Body Style: Lug
- Disc Shape: Undercut
- Material Disc: Ductile Iron - Nylon 11 Coated
- Flow Coefficient: 1850 cv
- Close-Off Pressure: 50 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC/VDC
- Leads and Connections: Terminal Block
- Torque: 210 in-lb
- Mechanical Movement: Rotary
- Auxiliary Switch: 2 SPDT
- Additional Features: Dual actuator
- Protection Rating: NEMA 2
- Valve Body: VBU-6200-0-L-16
- Valve Linkage: Included with assembly
- Actuator: BRY-NR-2224-541+BRY-NR-2224-542
Product Alert: Not for use with steam.
Specifications
| Item Number | VSUS-6200-E25D-L-16 |
| Brand | Schneider Electric |
