VS-2313-526-9-44 | VB: 1-1/4 in, 3W, Ball, NPT, BR, 12.7 cv, 40 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric

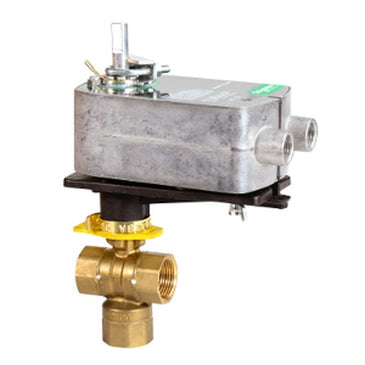

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VS-2313-526-9-44

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VS-2313-526-9-44 Documents

Datasheet More Info

Overview

Details for VS-2313-526-9-44

VB: 1-1/4 in, 3W, Ball, NPT, BR, 12.7 cv, 40 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2

Valve Assembly:

Body Size: 1-1/4 in
Configuration: 3-Way Mixing
Type: Ball
Connection: NPT
Material Trim: Brass
Flow Coefficient: 12.7 cv
Close-Off Pressure: 40 PSI
Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Spring Return
Loss of Power Position: Normally closed
Power Input Voltage: 24 VAC or 22 to 30 VDC
Leads and Connections: 3 ft Plenum
Torque: 35 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 2

Assembly Components:

Valve Body: VB-2313-500-9-44
Valve Linkage: Linkage included with valve body
Actuator: MS40-7043
Actuator Range: SmartX
Actuator Comment: Actuator mounted right side up

Product Alert: Not for use with steam. The direct coupled 24 Vac non-spring return rotary electric SmartX Actuators are designed for modulating control of dampers.

Specifications

Item Number	VS-2313-526-9-44
Brand	Schneider Electric
Control Input	Modulating
Control Valves Type	Ball Valve
CV / GPM	12.7 Cv
End Switch	No
Housing	NEMA 2
Spring Return	Spring Return
Valve Size	1.25" - 3 Way
Voltage	24V
