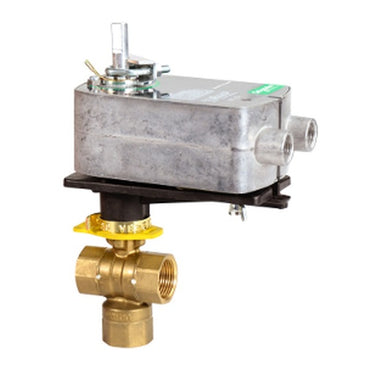

VS-2313-526-9-13 | VB: 3/4 in, 3W, Ball, NPT, BR, 1.3 cv, 50 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-2313-526-9-13
Overview
Details for VS-2313-526-9-13
VB: 3/4 in, 3W, Ball, NPT, BR, 1.3 cv, 50 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2
Valve Assembly:- Body Size: 3/4 in
- Configuration: 3-Way Mixing
- Type: Ball
- Connection: NPT
- Material Trim: Brass
- Flow Coefficient: 1.3 cv
- Close-Off Pressure: 50 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC or 22 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-2313-500-9-13
- Valve Linkage: Linkage included with valve body
- Actuator: MS40-7043
- Actuator Range: SmartX
- Actuator Comment: Actuator mounted right side up
Product Alert: Not for use with steam.
Specifications
| Item Number | VS-2313-526-9-13 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Ball Valve |
| CV / GPM | 1.29 Cv |
| End Switch | No |
| Housing | NEMA 2 |
| Spring Return | Spring Return |
| Valve Size | 0.75" - 3 Way |
| Voltage | 24V |
