Documents: VS-2313-505-9-04

Datasheet More Info

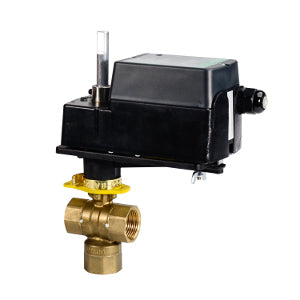

VS-2313-505-9-04 | VB: 1/2 in, 3W, Ball, NPT, BR, 2.4 cv, No Steam, 50 PSI; Act (MS41-6043): Elec, Prop, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

Brand: Schneider ElectricSKU: VS-2313-505-9-04

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VS-2313-505-9-04

Jump to: Overview & Specifications Reviews

Overview Details for VS-2313-505-9-04

VB: 1/2 in, 3W, Ball, NPT, BR, 2.4 cv, No Steam, 50 PSI; Act (MS41-6043): Elec, Prop, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2, SmartX

Valve Assembly:

Body Size: 1/2 in
Configuration: 3-Way Mixing
Type: Ball
Connection: NPT
Material Trim: Brass
Flow Coefficient: 2.4 cv
Close-Off Pressure: 50 PSI
Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 0 to 10 VDC
Loss of Power Type: Non-Spring Return
Loss of Power Position: Fail in place
Power Input Voltage: 24 VAC
Leads and Connections: 3 ft Plenum
Torque: 35 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 2

Assembly Components:

Valve Body: VB-2313-500-9-04
Valve Linkage: Linkage included with valve body
Actuator: MS41-6043
Actuator Range: SmartX

Product Alert: Not for use with steam. The direct coupled 24 Vac non-spring return rotary electric SmartX Actuators are designed for modulating control of dampers.

Specifications

Item Number	VS-2313-505-9-04
Brand	Schneider Electric
Control Input	Modulating
Control Valves Type	Ball Valve
CV / GPM	2.4 Cv
End Switch	No
Housing	NEMA 2
Spring Return	Non-Spring Return
Valve Size	0.5" - 3 Way
Voltage	24V
