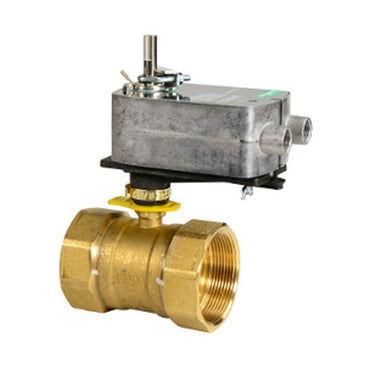

VS-2253-536-9-51 | VB: 1-1/2 in, 2W, Ball, NPT, SS, 22.8 cv, 70 PSI; Act (MS40-7043): Elec, Prop, SR, 24 VAC/VDC, Plen, 35 in-lb, Rotary | Schneider Electric

VB: 1-1/2 in, 2W, Ball, NPT, SS, 22.8 cv, 70 PSI; Act (MS40-7043): Elec, Prop, SR, 24 VAC/VDC, Plen, 35 in-lb, Rotary

• Body Size: 1-1/2 in
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 22.8 cv
• Control Media: Glycol 25-50% and Water
• Close-Off Pressure: 70PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC or 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Power Input Voltage: 22 to 30 VDC, 24 VAC, 24 VDC
• Leads and Connections: 3 ft Plenum
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2
• Product Line: Schneider Electric
• Product Range: SmartX Actuator
• Product Series: Mx4x-7xxx
• Actuator Use: Dampers, Globe Valves

• Valve Body: VB-2253-500-9-51
• Actuator: MS40-7043
• Actuator Range: SmartX Actuator
