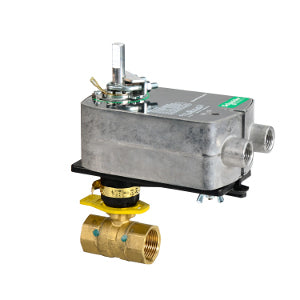

Schneider Electric | VS-2253-526-9-01
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-2253-526-9-01
Jump to: Overview & Specifications Reviews

Overview Details for VS-2253-526-9-01

VB: 1/2 in, 2W, Ball, NPT, SS, 0.38 cv, 130 PSI; Act (MS40-7043): Elec, Prop, 4-20 mAdc. SR, NC, 24 VAC, 22-30 VDC, Plen, 35 in-lb, Rotary, N2

Valve Assembly:
  • Body Size: 1/2 in
  • Configuration: 2-Way
  • Type: Ball
  • Connection: NPT
  • Material Trim: Stainless Steel
  • Flow Coefficient: 0.38 cv
  • Close-Off Pressure: 130 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC or 22 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-2253-500-9-01
  • Valve Linkage: Linkage included with valve body
  • Actuator: MS40-7043
  • Actuator Range: SmartX
  • Actuator Comment: Actuator mounted right side up

Product Alert: Not for use with steam.

Specifications

Item Number VS-2253-526-9-01
Brand Schneider Electric
Control Input Modulating
Control Valves Type Ball Valve
CV / GPM 0.38 Cv
End Switch No
Housing NEMA 2
Spring Return Spring Return
Valve Size 0.5" - 2 Way
Voltage 24V
