VP220A-150H-830-U161 | SmartX, Pressure Independent Valve Assembly, 6 in, 2-way, 830 GPM, MP2000-NSR proportional non-spring return actuator | Schneider Electric

Brand: Schneider ElectricSKU: VP220A-150H-830-U161
Schneider Electric | VP220A-150H-830-U161

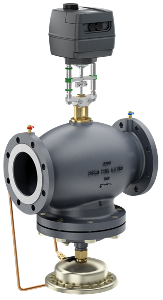

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP220A-150H-830-U161
Jump to: Overview & Specifications Reviews

Overview Details for VP220A-150H-830-U161

SmartX, Pressure Independent Valve Assembly, 6 in, 2-way, 830 GPM, MP2000-NSR proportional non-spring return actuator

Valve Assembly:
  • Body Size: Valve Body (VP221A-150CQH):
    • Body Size: 6 in
    • Configuration: 2-Way
    • Type: Pressure Independent
    • Connection: Flanged
    • Material Trim: Brass
    • Flow Rate Range: 332 to 830 gpm
    • Actuator Type: Actuator: (MP2000):

      • Actuator Type: Electric
      • Control Signal: Proportional
      • Control Signal Range: 0 to 10 VDC, 0 to 20 mAdc
      • Loss of Power Type: Non-Spring Return
      • Loss of Power Position: Fail in place
      • Power Input Voltage: 24 VAC
      • Leads and Connections: No leads
      • Force: 2000 N
      • Mechanical Movement: Linear
      • Additional Features: LED Status Indicator
      • Protection Rating: IP54
      Assembly Components:
      • Valve Body: VP221A-150CQH
      • Valve Range: SmartX PIBCV
      • Valve Linkage: None, tool-less connection
      • Actuator: MP2000
      • Actuator Range: SmartX Actuator

      Product Alert: Not for use with steam

Specifications

Item Number VP220A-150H-830-U161
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Pressure Independent
End Switch Yes
freeship upsground
Housing NEMA 1
Spring Return Non-Spring Return
Valve Size 150 mm - 2 Way
Voltage
