VF-2313-505-9-45 | VB: 1-1/4 in, 3W, Ball, NPT, BR, 19.4 cv, No Disc, 40 PSI; Act (MF41-6043): Elec, Float, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

Brand: Schneider ElectricSKU: VF-2313-505-9-45

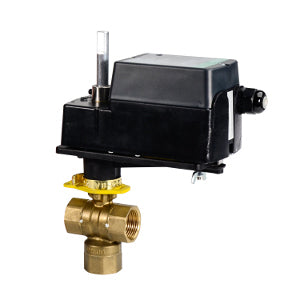

Schneider Electric | VF-2313-505-9-45
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VF-2313-505-9-45
Jump to: Overview & Specifications Reviews

Overview Details for VF-2313-505-9-45

VB: 1-1/4 in, 3W, Ball, NPT, BR, 19.4 cv, No Disc, 40 PSI; Act (MF41-6043): Elec, Float, NSR, 24 VAC, Plen, 35 in-lb, Rotary, N2, SmartX

Valve Assembly:
  • Body Size: 1-1/4 in
  • Configuration: 3-Way Mixing
  • Type: Ball
  • Connection: NPT
  • Material Trim: Brass
  • Flow Coefficient: 19.4 cv
  • Close-Off Pressure: 40 PSI
  • Actuator Type: Electric
  • Control Signal: Floating
  • Loss of Power Type: Non-Spring Return
  • Loss of Power Position: Fail in place
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 3 ft Plenum
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-2313-500-9-45
  • Valve Linkage: Linkage included with valve body
  • Actuator: MF41-6043
  • Actuator Range: SmartX

Product Alert: Not for use with steam. Full Port Model without characterizing disc.

Specifications

Item Number VF-2313-505-9-45
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Ball Valve
CV / GPM 19.4 Cv
End Switch No
Housing NEMA 2
Spring Return Non-Spring Return
Valve Size 1.25" - 3 Way
Voltage 24V
