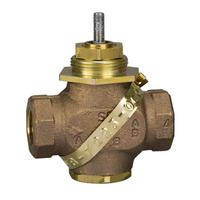

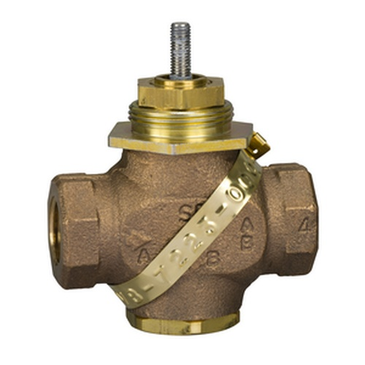

VB-7253-0-4-02 | Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up open, stainless steel trim with soft seats, 1.3 Cv | Schneider Electric

Venta, Globe Valve, 1/2 in, 2-way, straight threaded NPT, stem up open, stainless steel trim with soft seats, 1.3 Cv

Valve Body (VB-7253-0-4-02):

• Body Size: 1/2 in
• Configuration: 2-Way
• Type: Globe
• Body Pattern: Straightway
• Connection: NPT
• Stem Flow Action: Stem up A open
• Material Trim: Stainless Steel
• Flow Coefficient: 1.3 cv
• Control Media: Glycol 25 to 60%, Steam, Water
• Product Line: Schneider Electric
• Product Range: Venta
• Product Series: VB-7200

VB-7253 series single seat, stem down to close, two-way valves control water from 20 to 340°F (-7 to 171°C) or steam to 340°F (171°C) max. in heating or air conditioning systems. These valves have stainless steel trim with a Teflon® disc. They are used for two-position or proportional control applications. Valve assemblies require an actuator and a valve linkage that must be purchased separately
