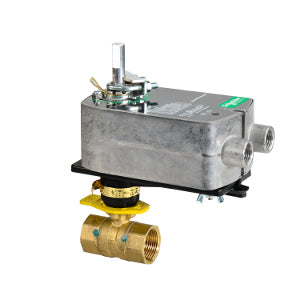

VA-2253-522-9-21 | VB: 1 in, 2W, Ball, NPT, SS, 4.4 cv, No Steam, 100 PSI; Act (MA40-7040): Elec, 2Pos, SR, NC, 120 VAC, App, 35 in-lb, Rotary, N2, SmartX | Schneider Electric

VB: 1 in, 2W, Ball, NPT, SS, 4.4 cv, No Steam, 100 PSI; Act (MA40-7040): Elec, 2Pos, SR, NC, 120 VAC, App, 35 in-lb, Rotary, N2, SmartX

• Body Size: 1 in/li>
• Configuration: 2-Way
• Type: Ball
• Connection: NPT
• Material Trim: Stainless Steel
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 100 PSI
• Actuator Type: Electric
• Control Signal: 2-Position (On/Off)
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally closed
• Power Input Voltage: 120 VAC
• Leads and Connections: 3 ft Appliance
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2

• Valve Body: VB-2253-500-9-21
• Valve Linkage: Linkage included with valve body
• Actuator: MA40-7040
• Actuator Range: SmartX
• Actuator Comment: Actuator mounted right side up
