Documents: VA-2213-526-9-27
VA-2213-526-9-27 | SmartX, Ball Valve Assembly, 1 in, 2-Way, NPT, 54.2 Cv, 100 PSI, Spring Return, 24 VAC/VDC, 3 ft Appliance | Schneider Electric

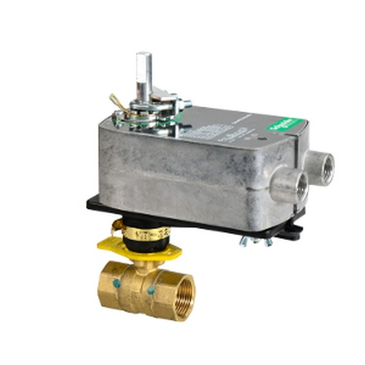

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA-2213-526-9-27
Overview Details for VA-2213-526-9-27
SmartX, Ball Valve Assembly, 1 in, 2-Way, NPT, 54.2 Cv, 100 PSI, Spring Return, 24 VAC/VDC, 3 ft Appliance
Valve Assembly:- Body Size: 1 in/li>
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Brass
- Flow Coefficient: 54.2 cv
- Control Media: Glycol 25-50% and Water
- Close-Off Pressure: 100PSI
- Actuator Type: Electric
- Control Signal: 2-Positio (On/Off)
- Loss of Power Type: Spring Return
- Power Input Voltage: 22 to 30 VDC, 24 VAC, 24 VDC
- Leads and Connections: 3 ft Appliance
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-7xxx
- Actuator Use: Dampers, Globe Valves
Assembly Components:
- Valve Body: VB-2213-500-9-27
- Actuator: MA40-7043
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Specifications
| Item Number | VA-2213-526-9-27 |
| Brand | Schneider Electric |
| Control Input | On/Off |
| Control Valves Type | Ball Valve |
| CV / GPM | 54.2 Cv |
| End Switch | No |
| Housing | NEMA 2 |
| Spring Return | Spring Return |
| Valve Size | 1" - 2 Way |
| Voltage | 24V |
