STD190 | STD190 Average Duct Temperature Sensor NTC 1.8 kW for Vista - Sensor Element = NTC, 1.8 kW at +25 C (77 F) | Schneider Electric (OBSOLETE)

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

STD190 Average Duct Temperature Sensor NTC 1.8 kW for Vista - Sensor Element = NTC, 1.8 kW at +25 C (77 F)

The STD190 is a mean value temperature sensor containing four thermistors. It is used for temperature measurement in air ducts and is intended for mounting on a grid or on to wires suspended across a duct.

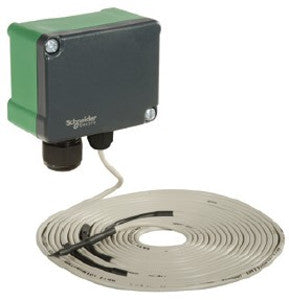

The STD190 is delivered as a complete unit, comprising a junction box (with amplifier) and four thermistors at 1 meter (3.3 ft) intervals along a cable. The distance from the junction box to the first thermistor is 2 meters (6.6 ft).
The STD190 housing is equipped with a 20 mm (0.79 in.) cable fitting.
