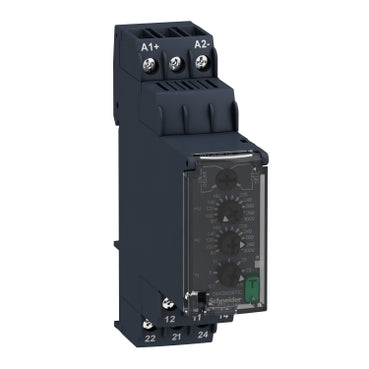

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RM22UB34

Documents and manuals

Square D RM22UB34 Documents

Overview

Details for RM22UB34

Zelio Voltage Control Relay, 1-Phase, 110-240V AC, 8A, 2 C/O, Screw Terminals

Zelio Voltage Control Relay
  • Network Number of Phases: 1 Phase
  • Relay Monitored Parameters: Overvoltage and undervoltage detection
  • Measurement Range: 80-300V AC 50/60 Hz
  • Maximum Switching Voltage: 250V AC
  • Maximum Switching Current: 8A AC
  • Rated Supply Voltage: 110-240V AC 50/60 Hz
  • Output Contacts: 2 C/O
  • Mounting Position: Any
  • Connections - Terminals: Screw terminals
  • Status LED: LED yellow for relay ON, LED green for power ON
  • Degree of Protection: IP20 on terminals, IP40 on housing, IP50 on front panel, conforming to IEC 60529
This Harmony RM22-UB relay allows monitoring of voltage control in single phase networks. This modular multi function single phase voltage control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Specifications

Range of Product
Harmony Control Relays
Product or Component Type
Voltage control relay
Relay Type
Voltage control relay
Phase
1 phase
supply circuit type
AC/DC
relay name
RM22UA
relay monitored parameters
Overvoltage and undervoltage detection
time delay
Adjustable 0.1...30 s;+/- 10 % of the full scale value on crossing the threshold Tt
switching capacity in VA
2000 VA
minimum switching current
10 mA 5 V DC
maximum switching current
8 A AC
power consumption in VA
5 VA AC
measurement range
80...300 V voltage AC/DC 50/60 Hz
utilisation category
AC-15 IEC 60947-5-1;DC-13 IEC 60947-5-1;AC-1 IEC 60947-4-1;DC-1 IEC 60947-4-1
contacts type and composition
2 C/O
reset time
1500 ms at maximum voltage
maximum switching voltage
250 V AC
[Us] Rated Supply Voltage
110...240 V AC/DC 50/60 Hz
supply voltage limits
60…280 V AC
maximum power consumption in W
2 W DC
immunity to microbreaks
20 ms
output contacts
2 C/O
nominal output current
8 A
maximum measuring cycle
250 ms measurement cycle as true rms value
hysteresis
5…50 % adjustable threshold setting
delay at power up
600 ms
repeat accuracy
+/- 0.5 % input and measurement circuit;+/- 2 % time delay
measurement error
< 1 % over the whole range with voltage variation;0.2 %/°C with temperature variation
response time
<= 500 ms
overvoltage category
III IEC 60664-1
insulation resistance
> 100 MOhm 500 V DC
connections - terminals
Screw terminals;2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;Screw terminals;2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end;Screw terminals;1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end;Screw terminals;1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
tightening torque
5.31…8.85 lbf.in (0.6…1 N.m) IEC 60947-1
housing material
Self-extinguishing plastic
mounting support
35 mm DIN rail conforming to EN/IEC 60715
electrical durability
100000 cycles
mechanical durability
10000000 cycles
contacts material
Cadmium free
safety reliability data
MTTFd = 433.7 years;B10d = 400000
Width
0.89 in (22.5 mm)
Net Weight
0.20 lb(US) (0.09 kg)
functionality
Overvoltage and undervoltage detection
compatibility code
RM22
electromagnetic compatibility
Immunity for residential;commercial and light-industrial environments EN/IEC 61000-6-1;Immunity for industrial environments EN/IEC 61000-6-2;Emission standard for residential;commercial and light-industrial environments EN/IEC 61000-6-3;Emission standard for industrial environments EN/IEC 61000-6-4;Electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2;Electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3;Electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4;Electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4;Surge immunity test 4 kV common mode)level 4 IEC 61000-4-5;Surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5;Conducted and radiated emissionsclass B group 1 CISPR 11;Conducted and radiated emissionsclass B CISPR 22
Standards
EN/IEC 60255-1
Product Certifications
CCC;CE;CSA;EAC;UL;GL;RCM
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
ambient air temperature for operation
-4…122 °F (-20…50 °C) 60 Hz;-4…140 °F (-20…60 °C) 50 Hz
relative humidity
93…97 % 77…131 °F (25…55 °C) IEC 60068-2-30
vibration resistance
0.075 mm 10…58.1 Hz) not in operation IEC 60068-2-6;1 gn 10…58.1 Hz) not in operation IEC 60068-2-6;0.035 mm 58.1…150 Hz) in operation IEC 60068-2-6;0.5 gn 58.1…150 Hz) in operation IEC 60068-2-6
shock resistance
15 gn 11 ms) not in operation IEC 60068-2-27;5 gn 11 ms) in operation IEC 60068-2-27
IP degree of protection
IP20 IEC 60529 terminals);IP40 IEC 60529 housing);IP50 IEC 60529 front panel)
pollution degree
3 IEC 60664-1
dielectric test voltage
2.5 kV AC 50 Hz;1 min IEC 60255-27
Category
22380-RELAYS-MEASUREMENT (RM17-RM35)
