NSYS3DC4420 | WM S3DC Plain Door w/o Plain Chassis, w/o Cable Gland Plate. H400xW400xD200mm. | Square D

Brand: Square DSKU: NSYS3DC4420

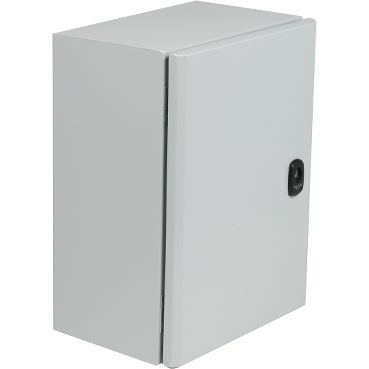

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYS3DC4420

Jump to: Overview & Specifications Reviews

Overview Details for NSYS3DC4420

WM S3DC Plain Door w/o Plain Chassis, w/o Cable Gland Plate. H400xW400xD200mm.

Specifications

range: Spacial
product name: Spacial S3DC
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 15.75 in (400 mm)
enclosure nominal width: 15.75 in (400 mm)
enclosure nominal depth: 7.87 in (200 mm)
door type: Solid
mounting plate description: Without mounting plate
type of gland plate: Without gland plate
installation accessory type: Wall-mounting
device composition: 1 body;1 door;1 lock
body type: Gutter-shaped front profile double sheet thickness;Single piece body
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: Screw driver insert lock
accessibility for operation: Front
removable parts: Door by hinges
material: steel
surface finish: epoxy-polyester powder
color: Gray RAL 7035)
Standards: IEC 62208
Product Certifications: UL
Net Weight: 15.98 lb(US) (7.25 kg)
NEMA Degree of Protection: NEMA 4X/13
IK degree of protection: IK10 IEC 62262
IP degree of protection: IP66 IEC 60529
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480314025
Returnability: Yes
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 10.04 in (25.5 cm)
Package 1 Width: 16.54 in (42 cm)
Package 1 Length: 19.29 in (49 cm)
Package 1 Weight: 15.98 lb(US) (7.25 kg)
Unit Type of Package 2: PAM
Number of Units in Package 2: 32
Package 2 Height: 72.44 in (184 cm)
Package 2 Width: 39.37 in (100 cm)
Package 2 Length: 47.24 in (120 cm)
Package 2 Weight: 546.75 lb(US) (248 kg)
Warranty: 18 months
