NSYPLM43G | Thalassa Wall-Mounting Enclosure, Polyester Monobloc, IP66, 430Hx330Wx200Dmm, Grey RAL 7035 | Square D

Brand: Square DSKU: NSYPLM43G

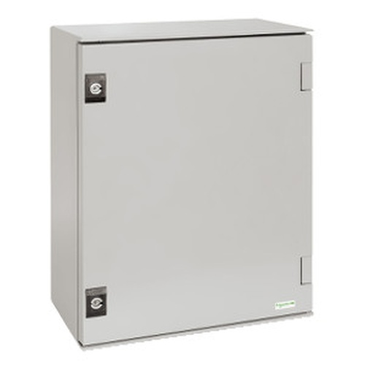

Square D | NSYPLM43G
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYPLM43G
Jump to: Overview & Specifications Reviews

Overview Details for NSYPLM43G

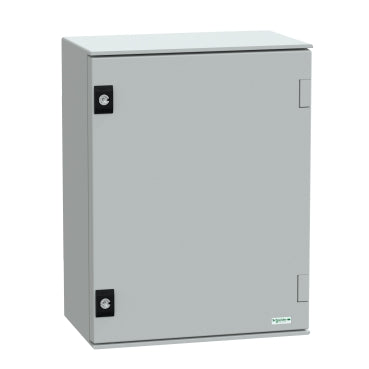

Thalassa Wall-Mounting Enclosure, Polyester Monobloc, IP66, 430Hx330Wx200Dmm, Grey RAL 7035

Thalassa Wall-Mounting EnclosurePolyester Monobloc
  • Product or Component Type: Compact Enclosure
  • Dimensions: 430 H x 330 W x 200 D mm
  • Enclosure Mounting: Wall Mounting
  • Number of Locks: 2
  • Mounting Plate Description: Without Mounting Plate
  • Color: Grey RAL 7035
  • Degree of Protection: IP66 Thalassa PLM wall-mounting polyester enclosure monobloc. 430 x 330 x 200 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

    • Specifications

    range
    Thalassa
    product name
    Thalassa PLM
    device short name
    PLM
    Enclosure type
    Multi-purpose
    Category
    Compact enclosure
    Nominal height
    16.93 in (430 mm)
    Nominal width
    12.99 in (330 mm)
    Nominal depth
    7.87 in (200 mm)
    enclosure mounting
    Wall mounted
    device composition
    1 body;1 door;2 lock
    door type
    Solid
    lock type
    3 mm double-bar lock
    number of locks
    2
    mounting plate description
    Without mounting plate
    accessibility for operation
    Front
    removable parts
    Door by hinges
    material
    polyester reinforced with fibreglass
    color
    Gray RAL 7035)
    Standards
    NEMA classification 4X;NEMA classification 13;IEC 62208
    Product Certifications
    UL
    Electrical Insulation Class
    Class II
    IP degree of protection
    IP66 IEC 60529
    IK degree of protection
    IK10 IEC 62262
    fire resistance
    1760 °F (960 °C) IEC 62208
    Ambient air temperature for operation
    -40…176 °F (-40…80 °C)
    Category
    80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
    Discount Schedule
    ES1
    GTIN
    3606480776519
    Returnability
    Yes
    Country of origin
    ES
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Height
    9.06 in (23.0 cm)
    Package 1 Width
    13.78 in (35.0 cm)
    Package 1 Length
    19.09 in (48.5 cm)
    Package 1 Weight
    11.40 lb(US) (5.173 kg)
    Unit Type of Package 2
    PAM
    Number of Units in Package 2
    50
    Package 2 Height
    72.44 in (184.0 cm)
    Package 2 Width
    39.37 in (100.0 cm)
    Package 2 Length
    47.24 in (120.0 cm)
    Package 2 Weight
    598.89 lb(US) (271.65 kg)
