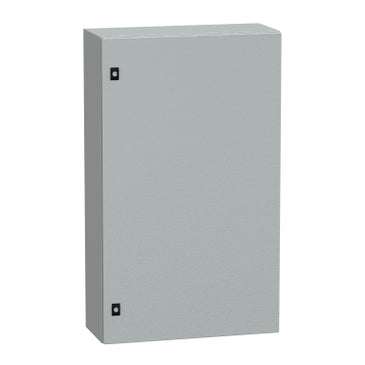

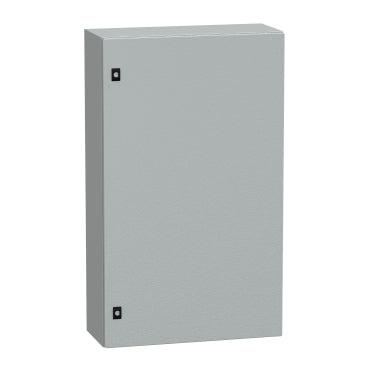

NSYCRN106250 | Spacial CRN Plain Door Enclosure w/o Mounting Plate. H1000xW600xD250 IP66 IK10 RAL7035 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NSYCRN106250
Overview
Details for NSYCRN106250
Spacial CRN Plain Door Enclosure w/o Mounting Plate. H1000xW600xD250 IP66 IK10 RAL7035
Spacial CRN Plain Door Enclosure w/o Mounting Plate- H1000xW600xD250
- Sides made from a single folded section; Back welded with double profile forming a protected sealed area
- 1 Front-facing door
- 3mm double-bar lock
- Steel body
- Expoxy polyester powder finish
- Grey RAL 7035
- IP66 IK10
Specifications
- range
- Spacial
- product name
- Spacial CRN
- Application
- Multi-purpose
- Category
- Compact enclosure
- enclosure nominal height
- 39.37 in (1000 mm)
- enclosure nominal width
- 23.62 in (600 mm)
- enclosure nominal depth
- 9.84 in (250 mm)
- installation accessory type
- Wall-mounting
- device composition
- 1 body;1 cable gland plate;1 door;1 lock
- door type
- Solid
- mounting plate description
- Without mounting plate
- body type
- Back welded with double profile forming a protected sealed area;Sides made from a single folded section
- number of doors
- Front face 1
- door opening side
- Reversible 120 °)
- lock type
- 3 mm double-bar lock
- type of gland plate
- Standard
- accessibility for operation
- Front
- removable parts
- Door by hinges;Cable gland plate by screws
- material
- Body steel
- surface finish
- epoxy-polyester powder
- color
- Gray RAL 7035)
- Standards
- IEC 62208
- Product Certifications
- UL;cUL;DNV-GL
- Net Weight
- 58.64 lb(US) (26.6 kg)
- IP degree of protection
- IP66 IEC 60529
- IK degree of protection
- IK10 IEC 62262
- Category
- 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
- Discount Schedule
- ES1
- GTIN
- 3606480212772
- Returnability
- No
- Country of origin
- ES
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.43 in (26.5 cm)
- Package 1 Width
- 24.02 in (61.0 cm)
- Package 1 Length
- 39.96 in (101.5 cm)
- Package 1 Weight
- 50.46 lb(US) (22.89 kg)
- Warranty
- 18 months
