LX1D8G7 | TeSys D Contactor Coil, 120V AC 50/60 Hz for 115 & 150 A Contactor | Square D by Schneider Electric

Brand: Square DSKU: LX1D8G7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LX1D8G7

Jump to: Overview & Specifications Reviews

Overview Details for LX1D8G7

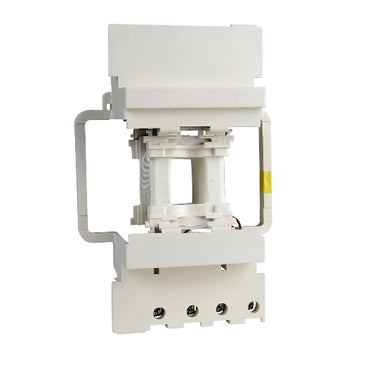

TeSys D Contactor Coil, 120V AC 50/60 Hz for 115 & 150 A Contactor

This product is TeSys Deca replacement AC coil 120V 50/60Hz for TeSys Deca contactors. It is applied on 3 and 4-pole contactors LC1D115. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product or component type: Contactor coil
device short name: LX1D8
Control circuit type: AC at 50/60 Hz
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Average resistance: 4377 Ohm at 20 °C
Inductance of closed circuit: 109.69 H
Product compatibility: LC1D150
LC1D115
Mechanical durability: 8 Mcycles
Maximum operating rate: 1200 cyc/h 60 °C
Coil technology: Without built-in suppressor module
Control circuit voltage limits: Drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C)
Operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)
Inrush power in VA: 280…350 VA 60 Hz cos phi 0.9 (at 20 °C)
280…350 VA 50 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA: 2…18 VA 60 Hz cos phi 0.9 (at 20 °C)
2…18 VA 50 Hz cos phi 0.9 (at 20 °C)
Heat dissipation: 3…4.5 W at 50/60 Hz
Ambient air temperature for operation: -5…60 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 6.2 cm
Package 1 Width: 11.5 cm
Package 1 Length: 17.0 cm
Package 1 Weight: 280.0 g
Warranty: 18 months
