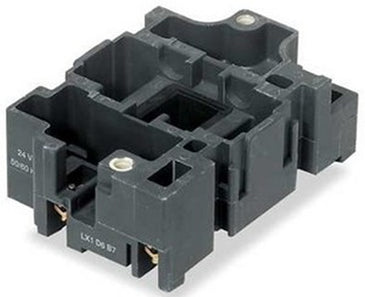

LX1D6B7 | Contactor + Relay Coil 24VAC IEC | Square D by Schneider Electric

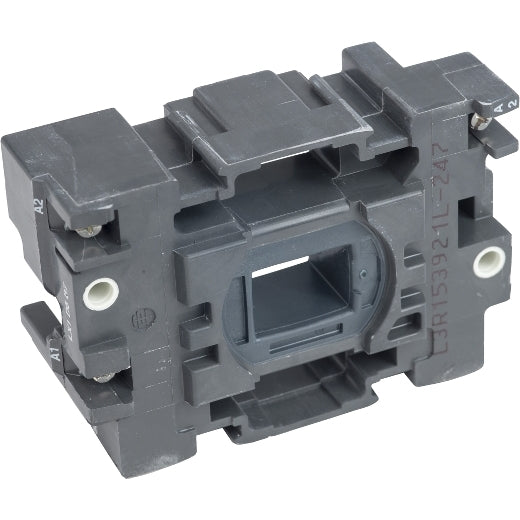

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LX1D6B7
Overview
Details for LX1D6B7
Contactor + Relay Coil 24VAC IEC
Contactor + Relay Coil 24VAC IECSpecifications
- Range
- TeSys
- Product or component type
- Contactor coil
- device short name
- LX1D6
- Control circuit type
- AC at 50/60 Hz
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- Average resistance
- 1.22 Ohm at 20 °C
- Inductance of closed circuit
- 0.08 H
- Product compatibility
- LC1D40
LC1D50
LC1D65...D95 - Mechanical durability
- 4 Mcycles
- Maximum operating rate
- 3600 cyc/h 60 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
Operational: 0.8...1.1 Uc at 50 Hz (at <55 °C)
Operational: 0.85...1.1 Uc at 60 Hz (at <55 °C) - Inrush power in VA
- 245 VA 60 Hz cos phi 0.75 (at 20 °C)
245 VA 50 Hz cos phi 0.75 (at 20 °C) - Hold-in power consumption in VA
- 26 VA 60 Hz cos phi 0.3 (at 20 °C)
26 VA 50 Hz cos phi 0.3 (at 20 °C) - Heat dissipation
- 6…10 W at 50/60 Hz
- Ambient air temperature for operation
- -5…60 °C
- Net weight
- 0.28 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.0 cm
- Package 1 Width
- 8.0 cm
- Package 1 Length
- 16.0 cm
- Package 1 Weight
- 317.0 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 16
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 5.506 kg
- Warranty
- 18 months
