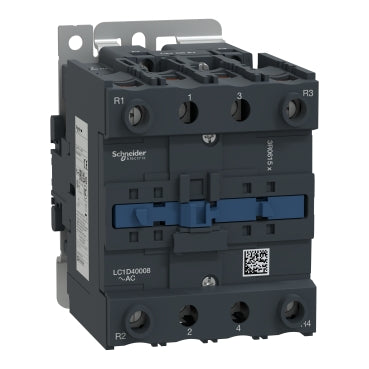

LC1D40008F7 | TeSys D Contactor, 4-Poles (2 NO + 2 NC), 60A, 110V AC Coil, Non-Reversing | Square D by Schneider Electric

Brand: Square DSKU: LC1D40008F7

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D40008F7

Jump to: Overview & Specifications Reviews

Overview Details for LC1D40008F7

TeSys D Contactor, 4-Poles (2 NO + 2 NC), 60A, 110V AC Coil, Non-Reversing

TeSys D Contactor

Number of Poles: 4-Poles

Pole Contact Composition: 2 NO + 2 NC

Rated Operational Current: 60A

Control Circuit Voltage: 110V AC 50/60 Hz

Non-Reversing TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 110 VAC 50/60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 4.92 inches deep. It weighs 3.17 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

range: TeSys
Range of Product: TeSys D
Product or Component Type: Contactor
device short name: LC1D
contactor application: Resistive load
utilisation category: AC-1
poles description: 4P
[Ue] rated operational voltage: Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC
[Ie] rated operational current: 60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
[Uc] control circuit voltage: 110 V AC 50/60 Hz
compatibility code: LC1D
pole contact composition: 2 NO + 2 NC
contact compatibility: M1
protective cover: Without
[Ith] conventional free air thermal current: 60 A 140 °F (60 °C) power circuit
Irms rated making capacity: 800 A 440 V power circuit IEC 60947
rated breaking capacity: 800 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current: 320 A 104 °F (40 °C) - 10 s power circuit;720 A 104 °F (40 °C) - 1 s power circuit;72 A 104 °F (40 °C) - 10 min power circuit;165 A 104 °F (40 °C) - 1 min power circuit
associated fuse rating: 80 A gG <= 690 V type 1 power circuit;80 A gG <= 690 V type 2 power circuit
average impedance: 1.5 mOhm - Ith 60 A 50 Hz power circuit
power dissipation per pole: 5.4 W AC-1
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
overvoltage category: III
pollution degree: 3
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 6 Mcycles
electrical durability: 1.4 Mcycles 60 A AC-1 <= 440 V
control circuit type: AC 50/60 Hz
coil technology: Without built-in suppressor module
control circuit voltage limits: 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
inrush power in VA: 140 VA 60 Hz 0.75 68 °F (20 °C));160 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA: 13 VA 60 Hz 0.3 68 °F (20 °C));15 VA 50 Hz 0.3 68 °F (20 °C))
heat dissipation: 4…5 W 50/60 Hz
operating time: 4...19 ms opening;12...26 ms closing
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) flexible without cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) flexible without cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) flexible with cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) flexible with cable end;Power circuit screw connection 1 0.00…0.05 in² (1…35 mm²) solid without cable end;Power circuit screw connection 2 0.00…0.04 in² (1…25 mm²) solid without cable end
tightening torque: Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16 in (4 mm);Power circuit 44.25 lbf.in (5 N.m) screw clamp terminals 0.00…0.04 in² (1…25 mm²) hexagonal 0.16 in (4 mm);Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Mounting Support: Plate;Rail
standards: CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
Product Certifications: GL;LROS (Lloyds register of shipping);GOST;UL;DNV;RINA;CSA;CCC;BV
IP degree of protection: IP20 front face IEC 60529
protective treatment: THIEC 60068-2-30
climatic withstand: IACS E10 exposure to damp heat
permissible ambient air temperature around the device: -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
operating altitude: 0...9842.52 ft (0...3000 m)
fire resistance: 1562 °F (850 °C) IEC 60695-2-1
flame retardance: V1 conforming to UL 94
mechanical robustness: Shocks contactor open 8 Gn for 11 ms);Shocks contactor closed 10 Gn for 11 ms);Vibrations contactor opened 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz)
Height: 5.00 in (127 mm)
Width: 3.35 in (85 mm)
Depth: 4.92 in (125 mm)
Net Weight: 3.17 lb(US) (1.44 kg)
Category: 22357-CTR;TESYS D;OPEN;40-65A AC
Discount Schedule: I12
GTIN: 3389110231588
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.98 in (15.2 cm)
Package 1 Width: 4.41 in (11.2 cm)
Package 1 Length: 5.20 in (13.2 cm)
Package 1 Weight: 3.24 lb(US) (1.469 kg)
Unit Type of Package 2: S02
Number of Units in Package 2: 5
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 16.85 lb(US) (7.645 kg)
Package 3 Height: 28.94 in (73.5 cm)
Warranty: 18 months
