LC1D150B7 | TeSys D Contactor, 3-Poles (3 NO), 150A, 24V AC Coil, Non-Reversing | Square D by Schneider Electric

Brand: Square DSKU: LC1D150B7

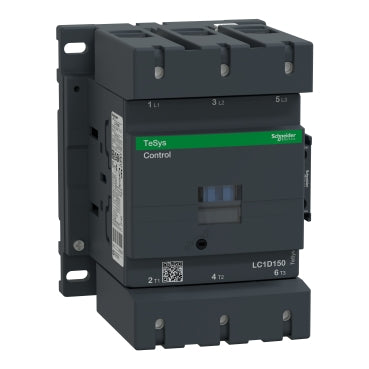

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D150B7

Jump to: Overview & Specifications Reviews

Overview Details for LC1D150B7

TeSys D Contactor, 3-Poles (3 NO), 150A, 24V AC Coil, Non-Reversing

TeSys D Contactor

Number of Poles: 3-Poles

Pole Contact Composition: 3 NO

Rated Operational Current: 150A

Control Circuit Voltage: 24V AC 50/60 Hz

Non-Reversing TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 150A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC and 125HP at 600VAC three phase. When used with a 480VAC up to 250A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 300A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

range: TeSys
Range of Product: TeSys D
Product or Component Type: Contactor
device short name: LC1D
contactor application: Resistive load;Motor control
utilisation category: AC-3;AC-4;AC-1;AC-3e
poles description: 3P
[Ue] rated operational voltage: Power circuit <= 1000 V AC 25...400 Hz;Power circuit <= 300 V DC
[Ie] rated operational current: 200 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;150 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;150 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit
[Uc] control circuit voltage: 24 V AC 50/60 Hz
motor power kW: 40 kW 220...230 V AC 50/60 Hz AC-3);75 kW 380...400 V AC 50/60 Hz AC-3);80 kW 415...440 V AC 50/60 Hz AC-3);90 kW 500 V AC 50/60 Hz AC-3);100 kW 660...690 V AC 50/60 Hz AC-3);75 kW 1000 V AC 50/60 Hz AC-3);22 kW 400 V AC 50/60 Hz AC-4);40 kW 220...230 V AC 50/60 Hz AC-3e);75 kW 380...400 V AC 50/60 Hz AC-3e);80 kW 415...440 V AC 50/60 Hz AC-3e);90 kW 500 V AC 50/60 Hz AC-3e);100 kW 660...690 V AC 50/60 Hz AC-3e);75 kW 1000 V AC 50/60 Hz AC-3e)
Maximum Horse Power Rating: 40 hp 200/208 V at AC 50/60 Hz for 3 phase;50 hp 230/240 V at AC 50/60 Hz for 3 phase;100 hp 460/480 V at AC 50/60 Hz for 3 phase;125 hp 575/600 V at AC 50/60 Hz for 3 phase
compatibility code: LC1D
pole contact composition: 3 NO
contact compatibility: M13
protective cover: With
[Ith] conventional free air thermal current: 200 A 140 °F (60 °C) power circuit
Irms rated making capacity: 140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;1660 A 440 V power circuit IEC 60947
rated breaking capacity: 1400 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current: 250 A 104 °F (40 °C) - 10 min power circuit;580 A 104 °F (40 °C) - 1 min power circuit;1200 A 104 °F (40 °C) - 10 s power circuit;1400 A 104 °F (40 °C) - 1 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
associated fuse rating: 10 A gG signalling circuit IEC 60947-5-1;315 A gG <= 690 V type 1 power circuit;250 A gG <= 690 V type 2 power circuit
average impedance: 0.6 mOhm - Ith 200 A 50 Hz power circuit
power dissipation per pole: 24 W AC-1;13.5 W AC-3;13.5 W AC-3e
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 1000 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
overvoltage category: III
pollution degree: 3
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 8 Mcycles
electrical durability: 0.85 Mcycles 150 A AC-3 <= 440 V;1 Mcycles 200 A AC-1 <= 440 V;0.85 Mcycles 150 A AC-3e <= 440 V
control circuit type: AC 50/60 Hz standard
coil technology: Built-in bidirectional peak limiting diode suppressor
control circuit voltage limits: 0.3...0.5 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.15 Uc -40…131 °F (-40…55 °C) operational AC 50/60 Hz;1...1.15 Uc 131…158 °F (55…70 °C) operational AC 50/60 Hz
inrush power in VA: 280…350 VA 60 Hz 0.9 68 °F (20 °C));280…350 VA 50 Hz 0.9 68 °F (20 °C))
hold-in power consumption in VA: 2…18 VA 60 Hz 0.9 68 °F (20 °C));2…18 VA 50 Hz 0.9 68 °F (20 °C))
heat dissipation: 3…4.5 W 50/60 Hz
operating time: 20...35 ms closing;40...75 ms opening
maximum operating rate: 1200 cyc/h 140 °F (60 °C)
connections - terminals: Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) flexible without cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) flexible without cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) flexible with cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) flexible with cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) solid without cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) solid without cable end
tightening torque: Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
auxiliary contact composition: 1 NO + 1 NC
auxiliary contacts type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency: 25...400 Hz
minimum switching voltage: 17 V signalling circuit
minimum switching current: 5 mA signalling circuit
insulation resistance: > 10 MOhm signalling circuit
non-overlap time: 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
Mounting Support: Rail;Plate
standards: CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
Product Certifications: UL;GOST;CCC;GL;BV;RINA;CSA;LROS (Lloyds register of shipping);DNV;UKCA;CE
IP degree of protection: IP20 front face IEC 60529
protective treatment: THIEC 60068-2-30
climatic withstand: IACS E10 exposure to damp heat
permissible ambient air temperature around the device: -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
operating altitude: 0...9842.52 ft (0...3000 m)
fire resistance: 1562 °F (850 °C) IEC 60695-2-1
flame retardance: V1 conforming to UL 94
mechanical robustness: Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 6 Gn for 11 ms)
Height: 6.22 in (158 mm)
Width: 4.72 in (120 mm)
Depth: 5.35 in (136 mm)
Net Weight: 5.51 lb(US) (2.5 kg)
Category: 22359-CTR;TESYS D;OPEN;80-150A AC&DC
Discount Schedule: I12
GTIN: 3389110475999
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.48 in (19.000 cm)
Package 1 Width: 7.09 in (18.000 cm)
Package 1 Length: 8.27 in (21.000 cm)
Package 1 Weight: 5.41 lb(US) (2.454 kg)
Unit Type of Package 2: P06
Number of Units in Package 2: 27
Package 2 Height: 29.53 in (75.000 cm)
Package 2 Width: 23.62 in (60.000 cm)
Package 2 Length: 31.50 in (80.000 cm)
Package 2 Weight: 174.73 lb(US) (79.258 kg)
Warranty: 18 months
