LAD9R1V | TeSys D Kit for Reversing Contactor, with Electrical Interlock, 3-Poles, 32A | Square D by Schneider Electric

Square D | LAD9R1V

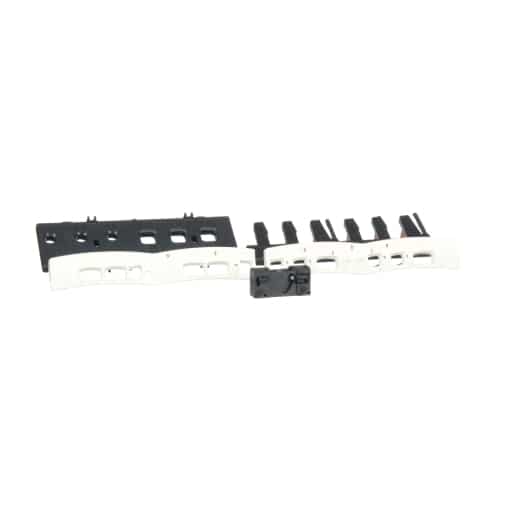

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LAD9R1V

Documents and manuals

Square D LAD9R1V Documents

Overview

Details for LAD9R1V

TeSys D Kit for Reversing Contactor, with Electrical Interlock, 3-Poles, 32A

TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2, an electrical interlocking LAD9V1, a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.

Specifications

Range of product
TeSys Deca
Range
TeSys
Linergy
device short name
LAD9
Product or component type
Kits for reversing contactor
Poles description
3P
Range compatibility
TeSys (TeSys D) contactor
TeSys (TeSys Deca)
Product compatibility
LC1D09
LC1D12
LC1D18
LC1D25
LC1D32
LC1D38
kit composition
Electrical and mechanical interlock
Set of power connection
Net weight
0.045 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8 cm
Package 1 Width
2.5 cm
Package 1 Length
9.3 cm
Package 1 Weight
70 g
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
9.6 cm
Package 2 Width
9.8 cm
Package 2 Length
15 cm
Package 2 Weight
726 g
Unit Type of Package 3
S03
Number of Units in Package 3
140
Package 3 Height
30 cm
Package 3 Width
30 cm
Package 3 Length
40 cm
Package 3 Weight
10.664 kg
Warranty
18 months
