DASKGS250 | Mechanical Lug Kit, 250A, 1 Phase Primary-3-Phase Wye or Delta Secondary Transformer | Square D by Schneider Electric

Square D | DASKGS250

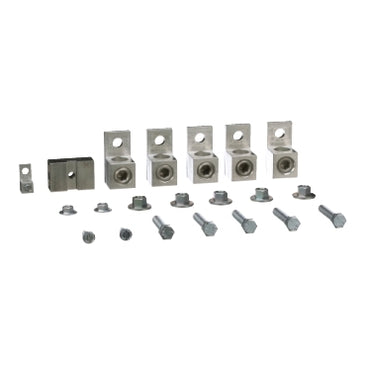

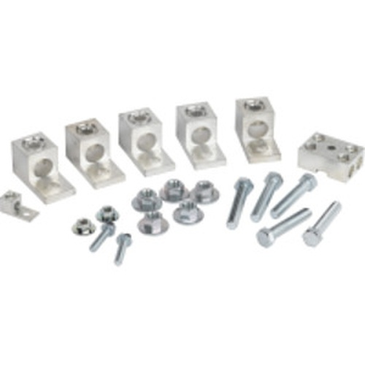

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DASKGS250

Documents and manuals

Square D DASKGS250 Documents

Overview

Details for DASKGS250

Mechanical Lug Kit, 250A, 1 Phase Primary-3-Phase Wye or Delta Secondary Transformer

Mechanical Lug Kit
  • Line Rated Current: 250A,
  • Phase Primary-3-Phase Wye or Delta Secondary Transformer
  • Provided equipment: Bonding lug quantity: 1, AWG 14-AWG 2 (stranded); Lug Quantity: 1 Location: Ground AWG14-AWG 2/0; Nut Quantity 7; Bolt Quantity: 7; Lug Quantity: 5 Location: secondary AWG6 350kcmil (stranded)
  • Material: Aluminum
As the industry leading designer, manufacturer, and supplier of low voltage, general purpose transformers. Schneider Electric has the expertise necessary to meet your increased demands by providing reliable products and outstanding support services. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. These units can be used outdoors without accessories. Units are UL Listed and CSA Certified. This mechanical lug kit is an electrical accessory. This Mechanical Lug Kit, 250A, 1Ph Primary-3Ph Wye or Delta Secondary Transformer, requires AWG 14/AWG 2 stranded, is made of aluminium and comes in a set of 5.

Specifications

Product or Component Type
Mechanical lug
Line Rated Current
250 A
accessory / separate part category
Electrical accessory
provided equipment
Bonding lug 1;AWG 14...AWG 2 stranded);Lug 1;ground AWG 14...AWG 2/0;Nut 7;;Bolt 7;;Lug 5;secondary AWG 6...350 kcmil stranded)
material
aluminium
product destination
Transformer
Quantity per Set
Set of 5
Category
16268-LUG KITS
Discount Schedule
PE2
GTIN
785901474395
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.80 in (9.652 cm)
Package 1 Width
4.10 in (10.414 cm)
Package 1 Length
4.20 in (10.668 cm)
Package 1 Weight
24.80 oz (703.068 g)
Warranty
18 months
