CPS-120-24-1 | Power Supply, 120 VAC to 120 VAC/24 VAC, 96 VA Load Capacity, Power Box, Switch, UL Listed | Lectro Components by Schneider Electric
Overview
Details for CPS-120-24-1
Power Supply, 120 VAC to 120 VAC/24 VAC, 96 VA Load Capacity, Power Box, Switch, UL Listed
Transformer- 120Vac to 120Vac & 24Vac 96 VA
- In Power Box w/Switch
- Fuse & Indication - UL Listed
Features
- UL Listed to meet code requirements
- 96VA load capacity
- Output On/Off control switch
- Breaker protected 24Vac Output
- Simple power connections
- Useful 120Vac convenience outlet
- Installation ready
Description

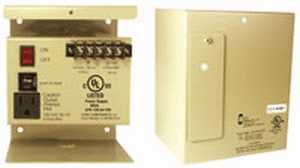

The UL Listed CPS120-024-100 Power Supply is a sturdy self-contained power source rated @ 96VA. It provides simple power connections and has an illuminated control switch on the 24V output, which is fitted with a protective circuit breaker. The unit also provides a convenient unswitched 120V power point and is installation ready
Specifications
Input: 120VAC, 60Hz, 6 Amp max. (1Amp max. used by 24V supply).
Output: 24VAC, 60Hz, 4Amp max. continuous. 120VAC, 60Hz, 5Amp max at convenience outlet. (Unswitched)
Protective Device: 24VAC supply with 4Amp re-settable thermal circuit breaker.
120VAC supply, none.
Controls: Double pole switch with power indicating lamp, fitted on the primary of the 24V
transformer. 120V convenience outlet power uncontrolled.
Connections: One 5 position terminal block with combination head screws and wire clamps. Provided
connection for 120VAC input, 24VAC output and safety ground.
Enclosure: Three piece steel enclosure, with 4, ¼˝O mounting holes, and
standard ⅞˝ Ø, top and bottom knockouts. Removable outer cover fitted with an indicator
lamp ‘peephole’, and a removable control switch access plate.
Dimensions: 6⅛˝H x 5¼˝W x 4¼˝D.
Operating Temp: -15ºF to 140ºF (-25ºC to 60ºC).
Weight: 6.10 Lbs. (2.8 Kg.)
Standard Accessories: Instruction/ Installation sheet, Warranty Card.
Safety Approvals: UL Listed for the US and Canada, UL File # E207801
Specifications
Item Number | CPS-120-24-1 |
Brand | Lectro Components |
