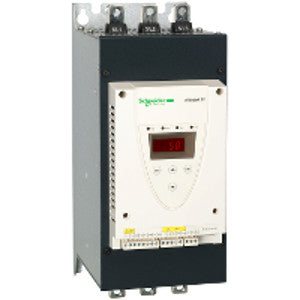

ATS22C17S6 | Altistart 22 Soft Start (ATS22), for Asynchronous Motor, 156A, 230-600V, 45-110 kW, Triple-phase, Integrated Bypass, w/Heat Sink | Square D by Schneider Electric

Altistart 22 Soft Start (ATS22), for Asynchronous Motor, 156A, 230-600V, 45-110 kW, Triple-phase, Integrated Bypass, w/Heat Sink

• For Asynchronous Motor
• lcL Starter Rating: 156A
• US Rated Supply Voltage: 230-600V
• Motor Power kW: 45-110 kW
• Network Number of Phases: Triple-phase
• Integrated Bypass
• Assembly Style: with Heat Sink

Description

The ATS22C17S6 is a soft start & stop unit for applications with three-phase squirrel asynchronous motors with a power rating from 4 to 400 kW. Products from the Altistart 22 (ATS22) model range by Schneider Electric are compatible with various applications found in the industrial, chemical, and food & beverage sectors (compressors, centrifugal machines, fans, conveyors, fans).

Features

Features of the ATS22 series soft start & stop unit include:

• Plug-and-play input and output connectors
• PC configuration software
• Configurable input/output
• Integrated application bypass
• Support of various communication protocols (embedded Modbus and Ethernet ports) and gateways
• Class-10 motor protection
• Protection against overload and power outages
• Remote access and mount keypad

Functions

The ATS22C17S6 can be used for different applications and can be configured remotely or via an integrated display terminal. Some of its functions include:

• Exclusive constant torque control (patented by Schneider Electric) for the motors during acceleration and deceleration
• Easily adjustable start torque and ramp
• Wide frequency tolerance
• Reduced pressure surges
• Motor preheating function for additional protection against overcurrents and underloads
• Starting time monitoring
• Various inputs and outputs
• Possibility to bypass the starter with a contactor
• RS-485 connection link to Modbus
• Configuration option for a second motor

You can refer to the product’s manual for a complete list of available applications and functions.

Advantages

Starting with a soft start & stop the unit from the Altistart 22 offers various benefits.

The device can help you resolve common problems with mechanical stress and hydraulic transients of acceleration/deceleration. The unit also provides smooth control and easy adjustments. Additionally, ATS22 can memorize the settings, eliminating the need to adjust them manually each time you change the load.
