9422TF2 | DISCONNECT SWITCH 600VAC 200AMP NEMA | Square D by Schneider Electric

Brand: Square DSKU: 9422TF2

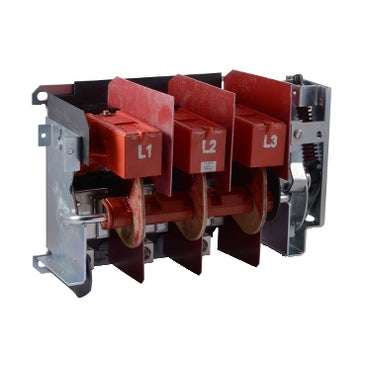

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9422TF2

Jump to: Overview & Specifications Reviews

Overview Details for 9422TF2

DISCONNECT SWITCH 600VAC 200AMP NEMA

9422T disconnect switches are designed for variable depth, flange mounting applications. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This 200 A disconnect switch will accept Class H, J, K or R fuses only. This 200 A disconnect switch is designed for right or left flange mounting. The variable depth mounting range is 9.12 to 19.25 inches. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 250 VDC max when using two poles. 9422A operating handles must be purchased separately. Disconnect switch lugs are rated for #6 to 300 Kcmil with copper or aluminum wire. Switch is UL component recognized and CSA certified. Disconnect switch is UL Component Recognized and CSA certified

Specifications

Range: 9422T
Product: Disconnect Switch
Disconnect Type: Fusible disconnect switch
Mounting Type: Flange rod variable depth
Current Rating: 200 A
Horsepower Rating: 40 hp 200 V AC;60 hp 230 V AC;125 hp 460 V AC;150 hp 575 V AC;40 hp 250 V DC
Fuse Rating: 200 A 250/600 V
Handle Type: Ordered separately
Fuse Type: H;K;J;R
Certifications: CSA;UL Recognized
Category: 21732-9422
Discount Schedule: CP1
GTIN: 785901043744
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.20 in (23.368 cm)
Package 1 Width: 12.10 in (30.734 cm)
Package 1 Length: 20.70 in (52.578 cm)
Package 1 Weight: 25.38 lb(US) (11.512 kg)
Warranty: 18 months
