9070T500D31 | TRANSFORMER CONTROL 500VA 240/480V-120/240V | Square D by Schneider Electric

Square D | 9070T500D31

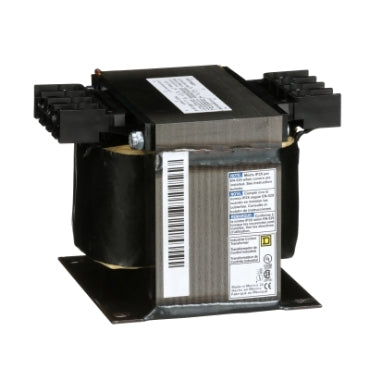

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T500D31

Documents and manuals

Square D 9070T500D31 Documents

Overview

Details for 9070T500D31

TRANSFORMER CONTROL 500VA 240/480V-120/240V

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 500VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110/220V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 3.84 in (H), 4.5 in (W), 5.49 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2. This product has a compatability for FSC2. This product comes with an 18 month warranty.

Specifications

Product Type
Industrial Control Transformer
Power Rating
500 VA
Type
T
Number of Phases
1 phase
Power Rating
500 VA UL;500 VA CSA;500 VA NOM;300 VA
Temperature Rise
115 °C
Electrical Connection
Screw clamp terminals
Height
3.84 in (97.54 mm)
Width
4.5 in (114.30 mm)
Depth
5.49 in (139.45 mm)
Material
Copper winding
Fingersafe Cover Compatibility
FSC2
Certifications
UL listed file E61239;CSA file LR37055 guide 184-N-90
Enclosure Type
Not rated (open device)
Insulation Temperature
356 °F (180 °C)
Category
16201-9070 T (NOT TF) 250-2000VA
Discount Schedule
CP8
GTIN
785901907206
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.50 in (16.51 cm)
Package 1 Width
6.70 in (17.018 cm)
Package 1 Length
7.60 in (19.304 cm)
Package 1 Weight
12.34 lb(US) (5.597 kg)
Warranty
10 Years
