9070T500D3 | TRANSFORMER CONTROL 500VA 208V-120V | Square D by Schneider Electric

Brand: Square DSKU: 9070T500D3

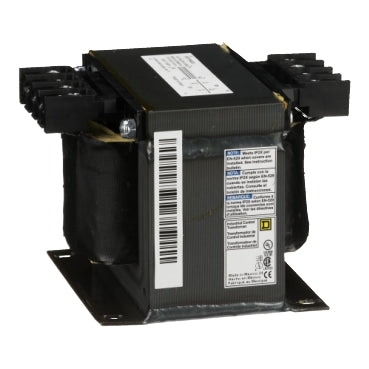

Square D | 9070T500D3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T500D3

Overview Details for 9070T500D3

TRANSFORMER CONTROL 500VA 208V-120V

Type T is our most popular and complete line of control transformers and is best choice if size and cost are of concern. These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 500VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 115 °C. Dimensions for this product are 3.84 in (H), 4.5 in (W), 5.49 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.

Specifications

Product Type
Industrial Control Transformer
Power Rating
500 VA
Type
T
Number of Phases
1 phase
Power Rating
500 VA UL;500 VA CSA;500 VA NOM;300 VA
Temperature Rise
115 °C
Electrical Connection
Screw clamp terminals
Height
3.84 in (97.54 mm)
Width
4.5 in (114.30 mm)
Depth
5.49 in (139.45 mm)
Material
Copper winding
Fingersafe Cover Compatibility
FSC2
Certifications
CSA file LR37055 guide 184-N-90;UL listed file E61239
Enclosure Type
Not rated (open device)
Insulation Temperature
356 °F (180 °C)
Category
16201-9070 T (NOT TF) 250-2000VA
Discount Schedule
CP8
GTIN
785901905677
Number of Units in Package 1
1
Package 1 Weight
12.55 lb(US) (5.693 kg)
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Package 1 Height
6.40 in (16.256 cm)
Package 1 Width
6.80 in (17.272 cm)
Package 1 Length
7.50 in (19.05 cm)
Warranty
10 Years
