9070T500D1 | Industrial Control Transformer: 500VA, 240/480V-120V | Square D by Schneider Electric

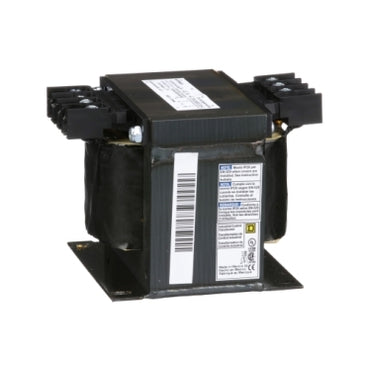

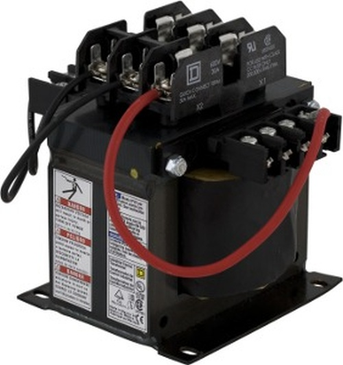

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T500D1
Overview
Details for 9070T500D1
Industrial Control Transformer: 500VA, 240/480V-120V
Industrial Control Transformer:- Rating: 500VA
- Primary Voltage: 240x480V or 230x460V or 220x440V
- Secondary Voltage: 120V or 115V or 110V
- Temperature Rise: 115 Degrees C
- Voltage Code: D1
Specifications
- Product Type
- Industrial Control Transformer
- Power Rating
- 500 VA
- Type
- T
- Number of Phases
- 1 phase
- Power Rating
- 500 VA UL;500 VA CSA;500 VA NOM;300 VA
- Temperature Rise
- 115 °C
- Electrical Connection
- Screw clamp terminals
- Height
- 3.84 in (97.54 mm)
- Width
- 4.5 in (114.30 mm)
- Depth
- 5.49 in (139.45 mm)
- Material
- Copper winding
- Fingersafe Cover Compatibility
- FSC2
- Certifications
- UL listed file E61239;CSA file LR37055 guide 184-N-90
- Enclosure Type
- Not rated (open device)
- Insulation Temperature
- 356 °F (180 °C)
- Category
- 16201-9070 T (NOT TF) 250-2000VA
- Discount Schedule
- CP8
- GTIN
- 785901904700
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.10 in (15.494 cm)
- Package 1 Width
- 6.80 in (17.272 cm)
- Package 1 Length
- 7.70 in (19.558 cm)
- Package 1 Weight
- 12.45 lb(US) (5.647 kg)
- Warranty
- 10 Years
