9070T250D1 | Industrial Control Transformer: 250VA 240/480V-120V | Square D by Schneider Electric

Square D | 9070T250D1

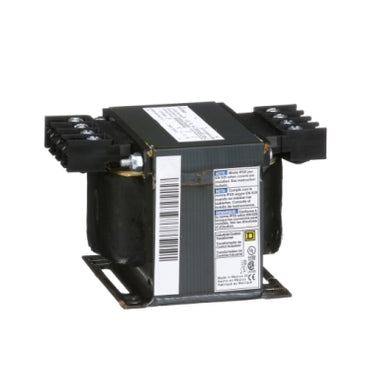

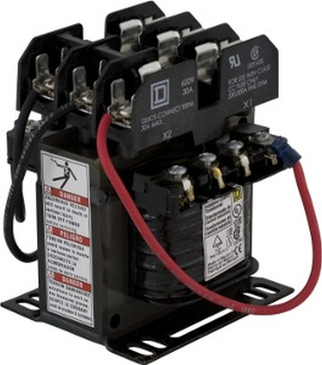

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9070T250D1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 9070T250D1 Documents

Datasheet More Info

Overview

Details for 9070T250D1

Industrial Control Transformer: 250VA 240/480V-120V

Industrial Control Transformer:

Rating: 250VA
Primary Voltage: 240x480V or 230x460V or 220x440V
Secondary Voltage: 120V or 115V or 110V
Temperature Rise: 55 Degrees C
Panel Mounting
Voltage Code: D1

Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 250VA and is 1 phase. This industrial control transformer has a power rating of 75VA and is 1 phase. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.

Specifications

Product Type: Industrial Control Transformer
Power Rating: 250 VA
Type: T
Number of Phases: 1 phase
Power Rating: 250 VA UL;250 VA CSA;250 VA NOM;160 VA
Temperature Rise: 80 °C
Electrical Connection: Screw clamp terminals
Height: 3.2 in (81.28 mm)
Width: 3.75 in (95.25 mm)
Depth: 5.3 in (134.62 mm)
Material: Copper winding
Fingersafe Cover Compatibility: FSC2
Certifications: CSA file LR37055 guide 184-N-90;UL listed file E61239
Enclosure Type: Not rated (open device)
Insulation Temperature: 266 °F (130 °C)
Category: 16201-9070 T (NOT TF) 250-2000VA
Discount Schedule: CP8
GTIN: 785901904670
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.28 in (8.331 cm)
Package 1 Width: 5.30 in (13.462 cm)
Package 1 Length: 3.75 in (9.525 cm)
Package 1 Weight: 7.92 lb(US) (3.593 kg)
Warranty: 10 Years
