9070T150D3 | TRANSFORMER CTRL150VA | Square D by Schneider Electric

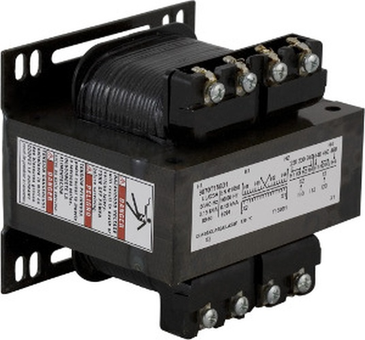

Square D | 9070T150D3

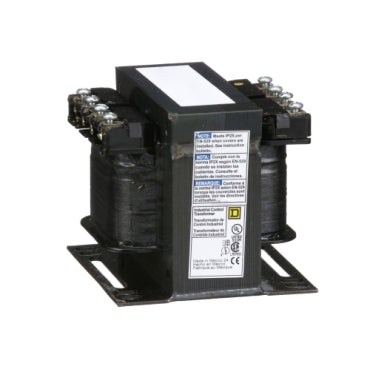

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T150D3

Documents and manuals

Square D 9070T150D3 Documents

Overview

Details for 9070T150D3

TRANSFORMER CTRL150VA

The Type T units are designed for the global market and are the best choice when size and cost are of concern. for the global market and are the best choice when size and cost are of concern. This is our most popular and complete offering of industrial control transformers. The following features are included with the Type T transformers sich as they are rated 50/60 Hz. They have customer installable accessories such as covers, fuse blocks and fuse clips. The Type T transformers are designed with various temperature classes. This Industrial Control Transformer is 1 phase and has a rated power of 150 VA. This transformer has a primary voltages of 208 V and a secondary voltage of 120 V with a temperature rise of 55 °C. The dimensions forThis product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This product is compatable with FSC1. This product complys to UL listed & CSA standards.

Specifications

Product Type
Industrial Control Transformer
Power Rating
150 VA
Type
T
Number of Phases
1 phase
Power Rating
150 VA
Temperature Rise
55 °C
Electrical Connection
Screw clamp terminals
Height
3.2 in (81.28 mm)
Width
3.75 in (95.25 mm)
Depth
3.59 in (91.19 mm)
Material
Copper winding
Fingersafe Cover Compatibility
FSC1
Certifications
UL listed file E61239;CSA file LR37055 guide 184-N-90
Enclosure Type
Not rated (open device)
Insulation Temperature
221 °F (105 °C)
Category
16200-9070 T (NOT TF) 50-200VA
Discount Schedule
CP8
GTIN
785901905752
Number of Units in Package 1
1
Package 1 Weight
5.51 lb(US) (2.499 kg)
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Package 1 Height
3.80 in (9.652 cm)
Package 1 Width
4.20 in (10.668 cm)
Package 1 Length
4.00 in (10.16 cm)
Warranty
10 Years
