9070T1500D3 | TRANSFORMER CONTROL 1500VA 208V-120V | Square D by Schneider Electric

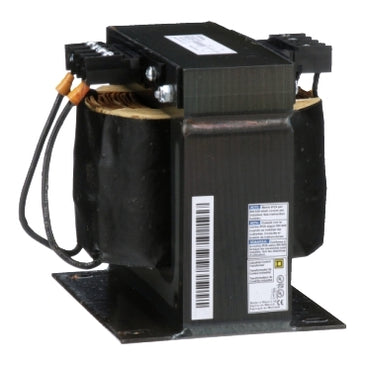

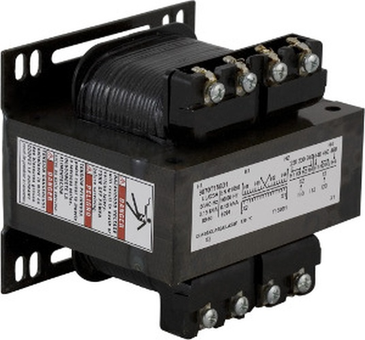

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T1500D3
Overview
Details for 9070T1500D3
TRANSFORMER CONTROL 1500VA 208V-120V
Type T is our most popular and complete line of control transformers and is best choice if size and cost are of concern. These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 1500VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 115 °C. Dimensions for this product are 6.17 in (H), 7.06 in (W), 5.92 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.Specifications
- Product Type
- Industrial Control Transformer
- Power Rating
- 1500 VA
- Type
- T
- Number of Phases
- 1 phase
- Power Rating
- 1500 VA UL;1500 VA CSA;1500 VA NOM;1000 VA
- Temperature Rise
- 115 °C
- Electrical Connection
- Screw clamp terminals
- Height
- 6.17 in (156.72 mm)
- Width
- 7.06 in (179.32 mm)
- Depth
- 5.92 in (150.37 mm)
- Material
- Copper winding
- Fingersafe Cover Compatibility
- FSC2
- Certifications
- UL listed file E61239;CSA file LR37055 guide 184-N-90
- Enclosure Type
- Not rated (open device)
- Insulation Temperature
- 356 °F (180 °C)
- Category
- 16201-9070 T (NOT TF) 250-2000VA
- Discount Schedule
- CP8
- GTIN
- 785901313809
- Number of Units in Package 1
- 1
- Package 1 Weight
- 34.70 lb(US) (15.74 kg)
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Package 1 Height
- 12.20 in (30.988 cm)
- Package 1 Width
- 11.70 in (29.718 cm)
- Package 1 Length
- 14.70 in (37.338 cm)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 18
- Package 2 Weight
- 666.60 lb(US) (302.364 kg)
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Warranty
- 10 Years
