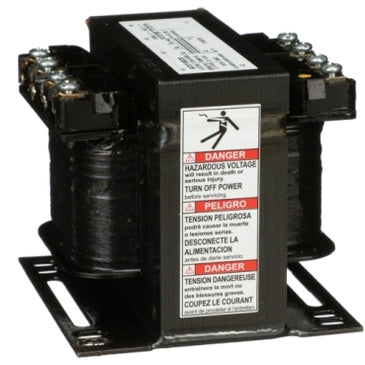

9070T100D20 | Industrial Control Transformer: 100VA 208/230/460V-115V | Square D by Schneider Electric

Industrial Control Transformer: 100VA 208/230/460V-115V

Industrial Control Transformer:

• Application: Specifically designed to handle high inrush associated with contactors and relays forapplications such as conveyor systems, paint lines, punch presses or overhead cranes
• Approvals: UL Listed File Number: E61239 - CSA Certified File Number: LR37055 Guide: 184-N-90 -CE Marked
• Fuse Block:
• Terminal Type: Screw Clamp
• Type: T
• Mounting Type: Panel
• Phase: 1-Phase
• Enclosure Type: Open
• Temperature Rise: 55 Degrees C
• Primary Voltage: 120x240V
• Insulation Temperature: 105 Degrees C
• Rating: 100 VA
• Secondary Voltage: 24V
• Depth: 3.34 inches
• Width: 3.38 inches
• Winding Material: Copper
• Height: 2.89 inches

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 100VA and is 1 phase. This transformer has a 208/230/460V, primary voltage and 115V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1. This product comes with an 18 month warranty.
